IMC0805ER1R8J01

IMC0805ER1R8J01

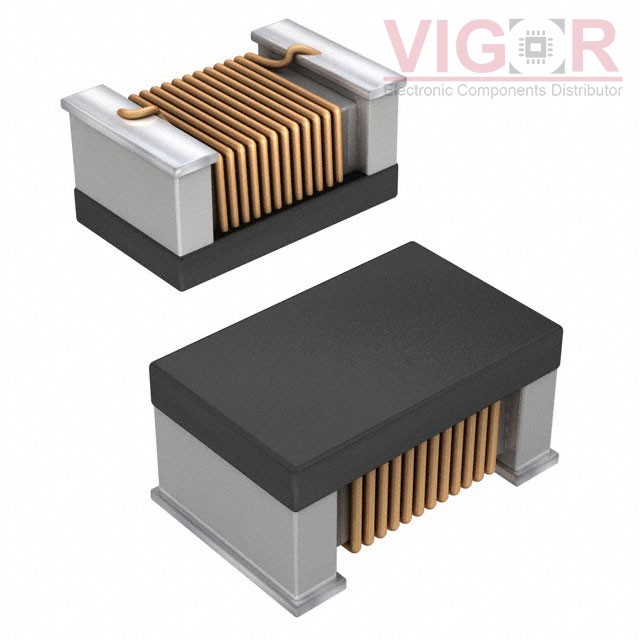

Image is for reference,
please contact us to get the real picture

Part No :

IMC0805ER1R8J01

Manufacturer
Vishay / Dale
Description
FIXED IND 1.8UH 120MA 3 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
IMC0805ER1R8J01 PDF
Availability
0 pieces
Unit Price
$0.12240

Current price of IMC0805ER1R8J01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ER1R8J01 Specifications
Type Description
Series:IMC-0805-01
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:1.8 µH
Tolerance:±5%
Current Rating (Amps):120 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3Ohm Max
Q @ Freq:15 @ 7.96MHz
Frequency - Self Resonant:120MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.055" (1.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

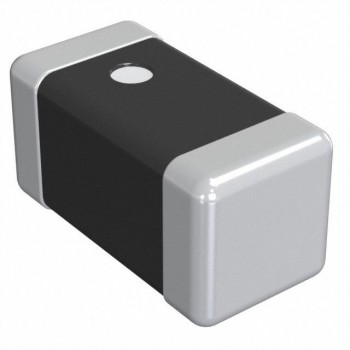

HOT DFE18SANR24MG0L

DFE18SANR24MG0L

FIXED IND 240NH 3.5A 30 MOHM SMD

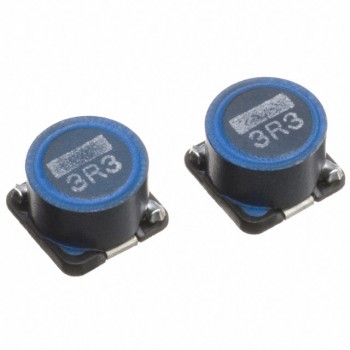

HOT LGJ7045TS-471MR31-H

LGJ7045TS-471MR31-H

FIXED IND 470UH 310MA 1.8 OHM

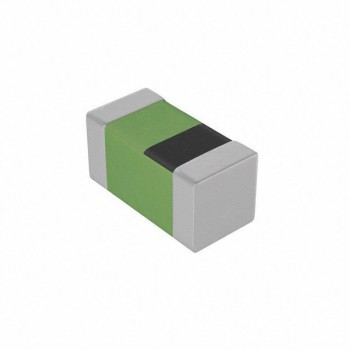

HOT LQG15WH15NJ02D
