HCF1305-R56-R

HCF1305-R56-R

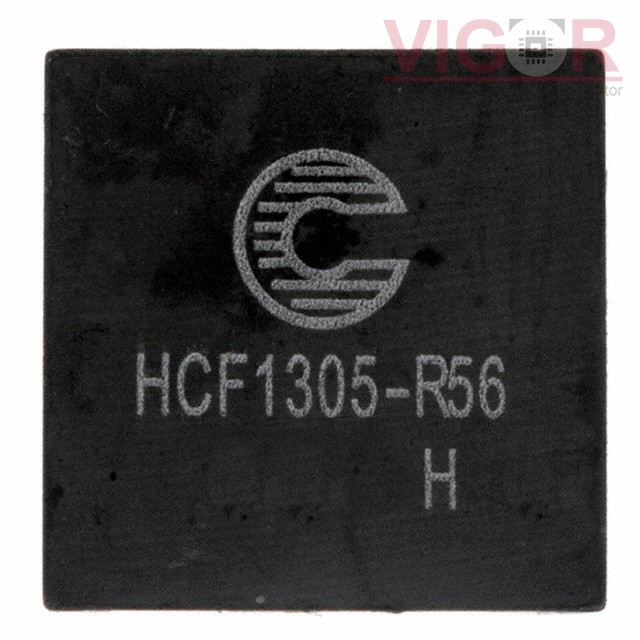

Image is for reference,
please contact us to get the real picture

Part No :

HCF1305-R56-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 560NH 32A 1 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
HCF1305-R56-R PDF
Availability
0 pieces
Unit Price
$1.95200

Current price of HCF1305-R56-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCF1305-R56-R Specifications
Type Description
Series:HCF1305
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):32 A
Current - Saturation (Isat):30A
Shielding:Unshielded
DC Resistance (DCR):1mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):0.197" (5.00mm)
