HPL505032F1080MRD3P

HPL505032F1080MRD3P

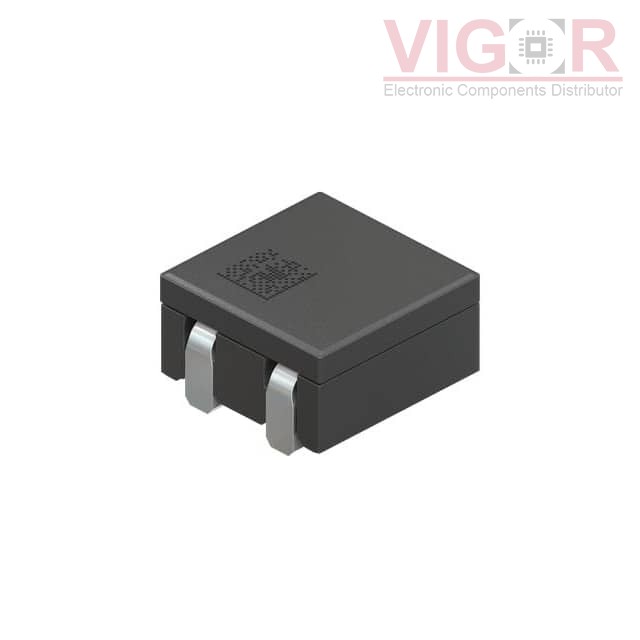

Image is for reference,
please contact us to get the real picture

Part No :

HPL505032F1080MRD3P

Manufacturer
TDK Corporation
Description
INDUCTORS FOR POWER CIRCUITS, AU
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
HPL505032F1080MRD3P PDF
Availability
0 pieces
Unit Price
$3.22000

Current price of HPL505032F1080MRD3P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HPL505032F1080MRD3P Specifications
Type Description
Series:HPL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:80 nH
Tolerance:±20%
Current Rating (Amps):34 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):777mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max):0.126" (3.20mm)
