ELL-6PM820M

ELL-6PM820M

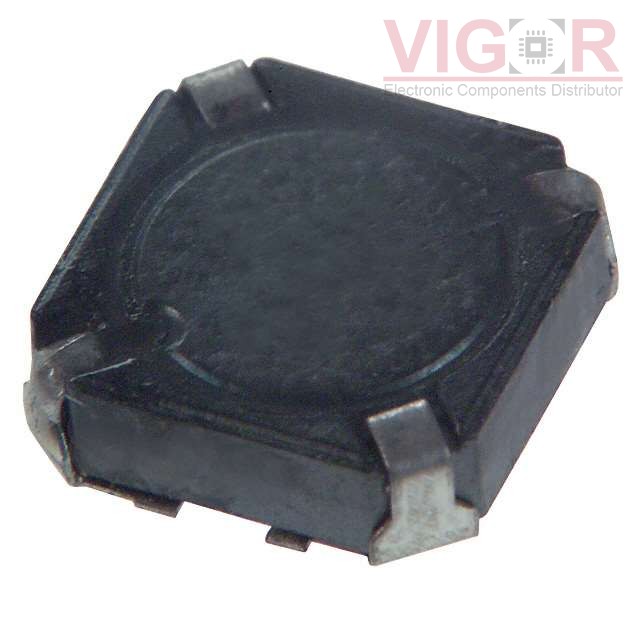

Image is for reference,
please contact us to get the real picture

Part No :

ELL-6PM820M

Manufacturer
Panasonic
Description
FIXED IND 82UH 360MA 680 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
ELL-6PM820M PDF
Availability
413 pieces
Unit Price
$0.63000

Current price of ELL-6PM820M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-6PM820M Specifications
Type Description
Series:M
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:82 µH
Tolerance:±20%
Current Rating (Amps):360 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):680mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):0.079" (2.00mm)
