AIMC-0603-22NJ-T

AIMC-0603-22NJ-T

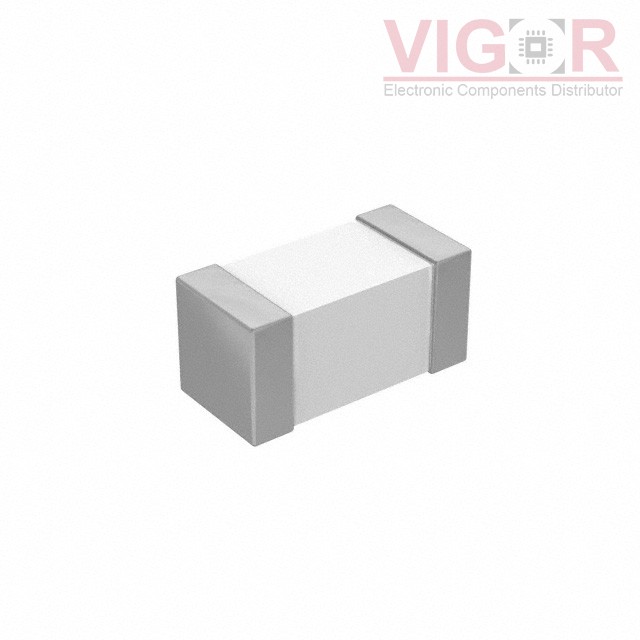

Image is for reference,
please contact us to get the real picture

Part No :

AIMC-0603-22NJ-T

Manufacturer
Abracon
Description
FIXED IND 22NH 300MA 400 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
AIMC-0603-22NJ-T PDF
Availability
575 pieces
Unit Price
$0.39000

Current price of AIMC-0603-22NJ-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AIMC-0603-22NJ-T Specifications
Type Description
Series:AIMC-0603
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ceramic
Inductance:22 nH
Tolerance:±5%
Current Rating (Amps):300 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):400mOhm Max
Q @ Freq:12 @ 100MHz
Frequency - Self Resonant:1.7GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.037" (0.95mm)
