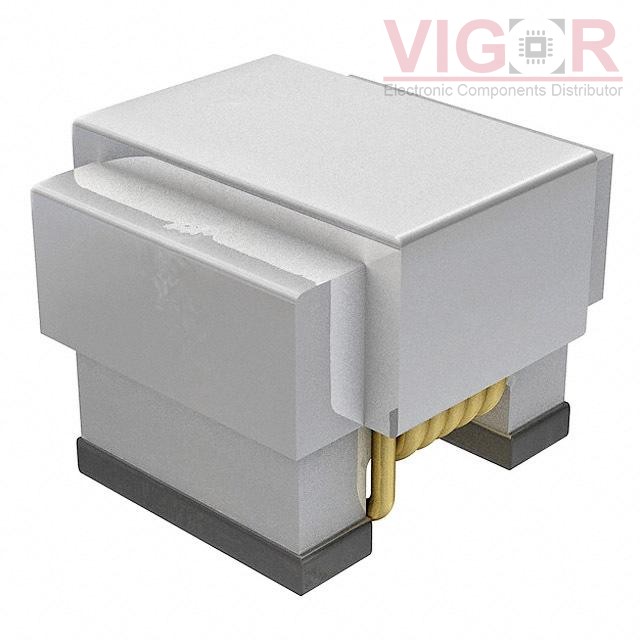

PE-0805CD561GTT

Image is for reference,
please contact us to get the real picture

Part No :: PE-0805CD561GTT

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 545NH 230MA 1.9 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: PE-0805CD561GTT PDF

Availability: 0 pieces

Unit Price: ~~$0.14725~~

Current price of PE-0805CD561GTT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PE-0805CD561GTT Specifications

Type	Description
Series:	0805CD
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	545 nH
Tolerance:	±2%
Current Rating (Amps):	230 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.9Ohm Max
Q @ Freq:	23 @ 50MHz
Frequency - Self Resonant:	340MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max):	0.062" (1.58mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ISC1210BNR33M

FIXED IND 330NH 475MA 360 MOHM

HOT

SPM6530T-R68M140

FIXED IND 680NH 16A 5.39 MOHM

HOT

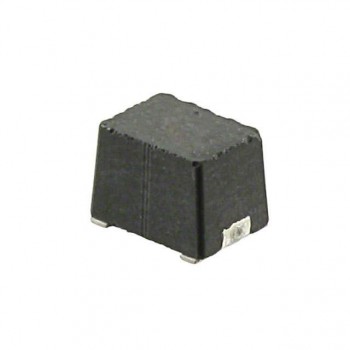

ISC1812ETR33K
