P3519R-684J

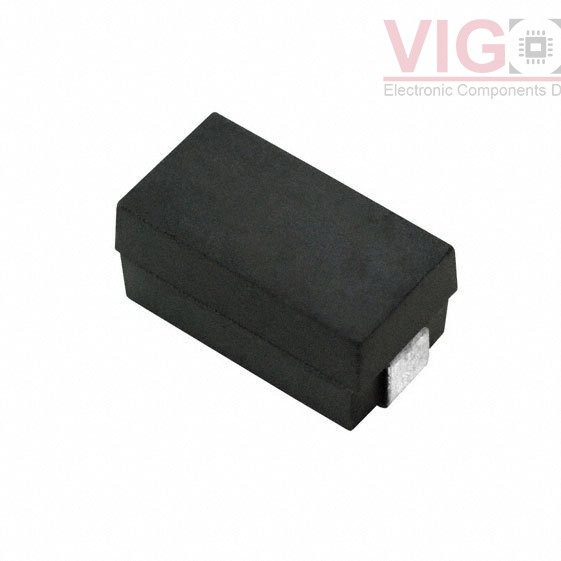

Image is for reference,
please contact us to get the real picture

Part No :: P3519R-684J

Manufacturer: API Delevan

Description: FIXED IND 680UH 147MA 13.59 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: P3519R-684J PDF

Availability: 0 pieces

Unit Price: ~~$1.80600~~

Current price of P3519R-684J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P3519R-684J Specifications

Type	Description
Series:	P3519R
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±5%
Current Rating (Amps):	147 mA
Current - Saturation (Isat):	170mA
Shielding:	Unshielded
DC Resistance (DCR):	13.59Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 130°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max):	0.185" (4.70mm)
