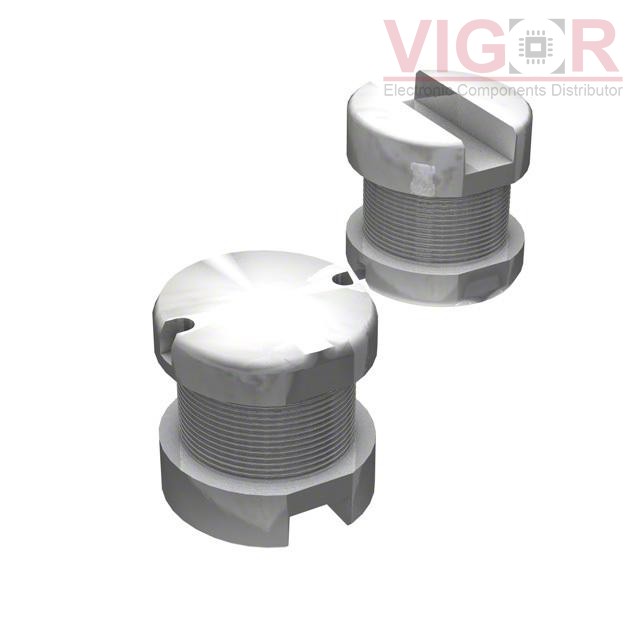

SDR0604-820KL

Image is for reference,
please contact us to get the real picture

Part No :: SDR0604-820KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 82UH 580MA 600MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: SDR0604-820KL PDF

Availability: 525 pieces

Unit Price: ~~$0.57000~~

Current price of SDR0604-820KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0604-820KL Specifications

Type	Description
Series:	SDR0604
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±10%
Current Rating (Amps):	580 mA
Current - Saturation (Isat):	750mA
Shielding:	Unshielded
DC Resistance (DCR):	600mOhm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	9MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):	0.189" (4.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

B82559A5682A020

FIXED IND 6.8UH 2.9 MOHM SMD

HOT

SRP6050CA-1R2M

FIXED IND 1.2UH 18A 5.83MOHM SMD

HOT

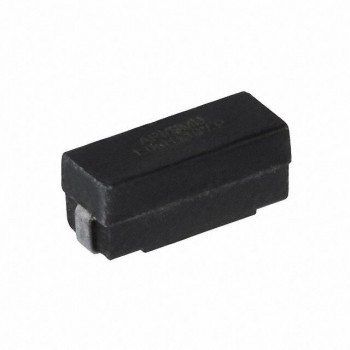

P1330-122G
