MLG0603P22NJT000

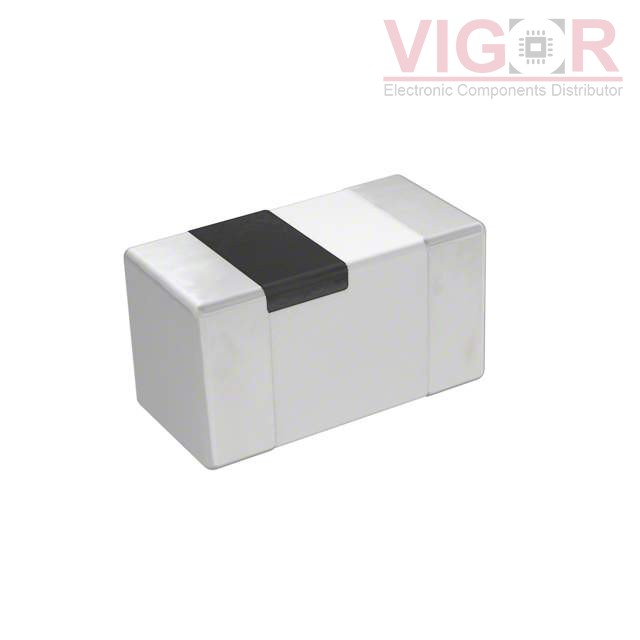

Image is for reference,
please contact us to get the real picture

Part No :: MLG0603P22NJT000

Manufacturer: TDK Corporation

Description: FIXED IND 22NH 150MA 1.9 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: MLG0603P22NJT000 PDF

Availability: 8656 pieces

Unit Price: ~~$0.14000~~

Current price of MLG0603P22NJT000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MLG0603P22NJT000 Specifications

Type	Description
Series:	MLG-P
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Non-Magnetic
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	150 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.9Ohm Max
Q @ Freq:	14 @ 500MHz
Frequency - Self Resonant:	2.2GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	500 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	0201 (0603 Metric)
Size / Dimension:	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max):	0.013" (0.33mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

HK160868NK-T

FIXED IND 68NH 300MA 850 MOHM

HOT

IMC1812RQ270J

FIXED IND 27UH 170MA 3.6 OHM SMD

HOT

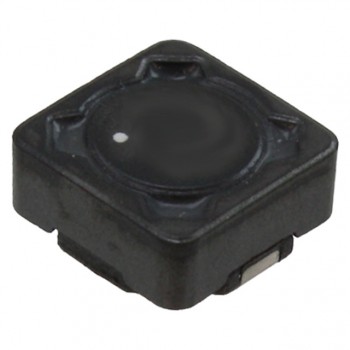

7447789115
