PM54-180M-RC

PM54-180M-RC

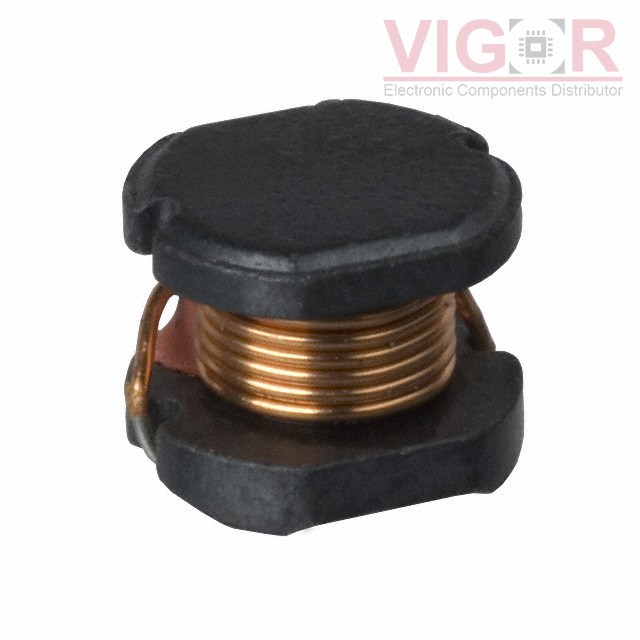

Image is for reference,
please contact us to get the real picture

Part No :

PM54-180M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 18UH 1.25A 150MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PM54-180M-RC PDF
Availability
57 pieces
Unit Price
$1.02000

Current price of PM54-180M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM54-180M-RC Specifications
Type Description
Series:PM54
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:18 µH
Tolerance:±20%
Current Rating (Amps):1.25 A
Current - Saturation (Isat):1.5A
Shielding:Unshielded
DC Resistance (DCR):150mOhm
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:18MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.189" (4.80mm)
