IMC0805ER27NJ01

IMC0805ER27NJ01

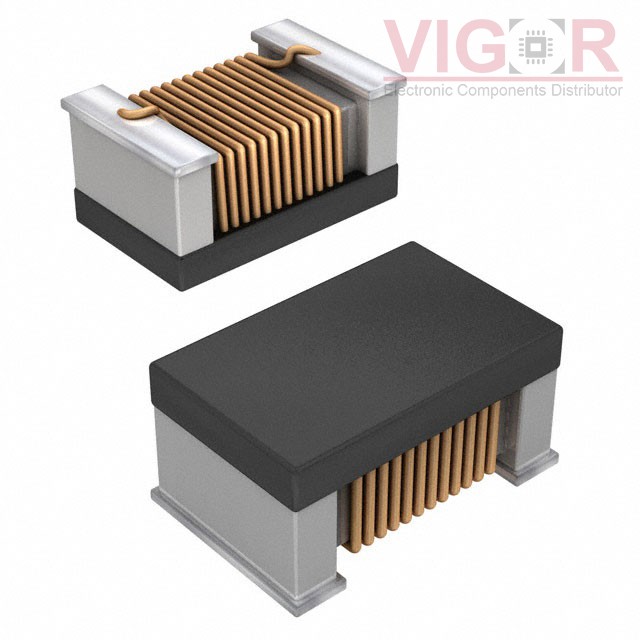

Image is for reference,
please contact us to get the real picture

Part No :

IMC0805ER27NJ01

Manufacturer
Vishay / Dale
Description
FIXED IND 27NH 600MA 120 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IMC0805ER27NJ01 PDF
Availability
0 pieces
Unit Price
$0.12240

Current price of IMC0805ER27NJ01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ER27NJ01 Specifications
Type Description
Series:IMC-0805-01
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:27 nH
Tolerance:±5%
Current Rating (Amps):600 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):120mOhm Max
Q @ Freq:60 @ 500MHz
Frequency - Self Resonant:2.6GHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.055" (1.40mm)
