SDR2207-R78ML

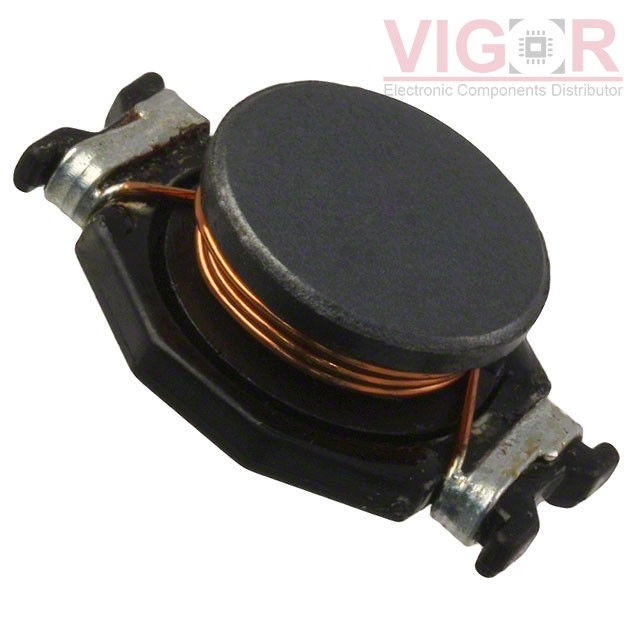

Image is for reference,
please contact us to get the real picture

Part No :: SDR2207-R78ML

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 780NH 15A 2.6 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: SDR2207-R78ML PDF

Availability: 0 pieces

Unit Price: ~~$0.69300~~

Current price of SDR2207-R78ML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR2207-R78ML Specifications

Type	Description
Series:	SDR2207
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	780 nH
Tolerance:	±20%
Current Rating (Amps):	15 A
Current - Saturation (Isat):	30A
Shielding:	Unshielded
DC Resistance (DCR):	2.6mOhm Max
Q @ Freq:	30 @ 5MHz
Frequency - Self Resonant:	104MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max):	0.307" (7.80mm)
