SDR1006-220ML

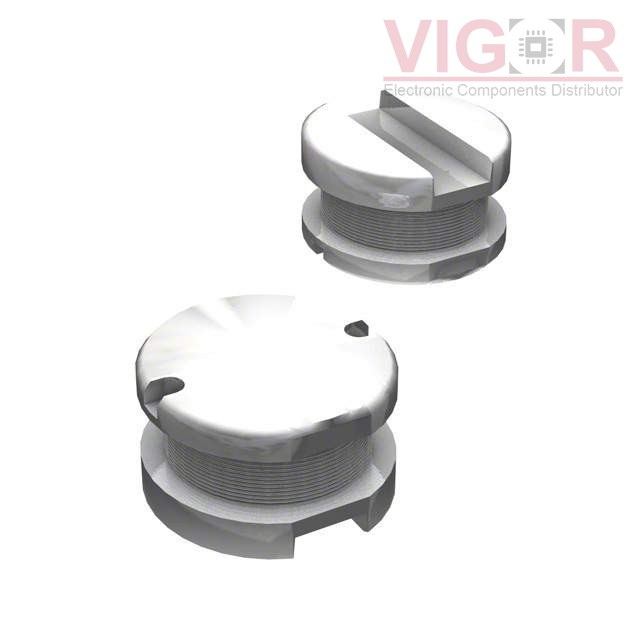

Image is for reference,
please contact us to get the real picture

Part No :: SDR1006-220ML

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 1.95A 100MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: SDR1006-220ML PDF

Availability: 9607 pieces

Unit Price: ~~$0.88000~~

Current price of SDR1006-220ML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1006-220ML Specifications

Type	Description
Series:	SDR1006
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.95 A
Current - Saturation (Isat):	3.5A
Shielding:	Unshielded
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	25 @ 2.52MHz
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):	0.228" (5.80mm)
