SDR0403-560KL

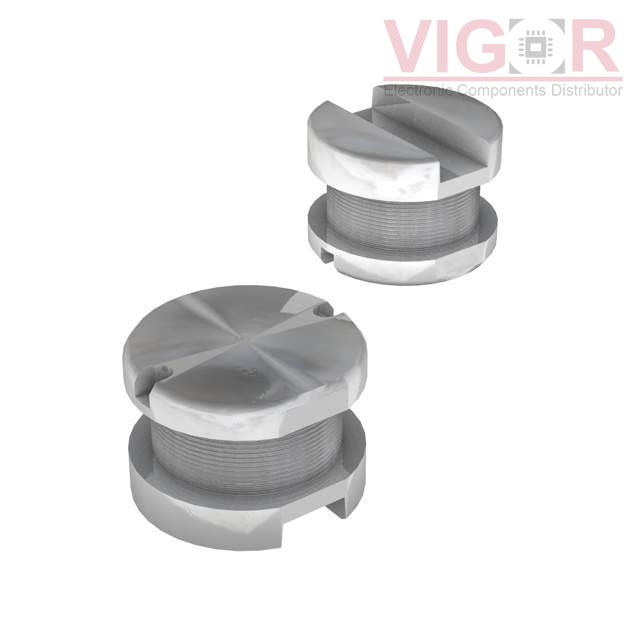

Image is for reference,
please contact us to get the real picture

Part No :

SDR0403-560KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 500MA 940MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
SDR0403-560KL PDF
Availability
0 pieces
Unit Price
$0.57000

Current price of SDR0403-560KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:SDR0403
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):500 mA
Current - Saturation (Isat):740mA
Shielding:Unshielded
DC Resistance (DCR):940mOhm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:12MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max):0.138" (3.50mm)
