HCM1A0503-R68-R

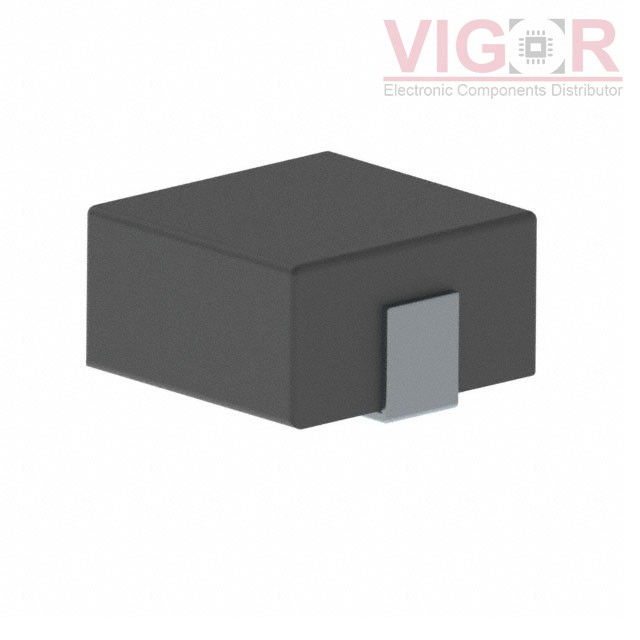

Image is for reference,
please contact us to get the real picture

Part No :: HCM1A0503-R68-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 680NH 8A 9.1MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: HCM1A0503-R68-R PDF

Availability: 0 pieces

Unit Price: ~~$0.99572~~

Current price of HCM1A0503-R68-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCM1A0503-R68-R Specifications

Type	Description
Series:	HCM1A
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron Powder
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	8 A
Current - Saturation (Isat):	12A
Shielding:	Shielded
DC Resistance (DCR):	9.1mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max):	0.118" (3.00mm)
