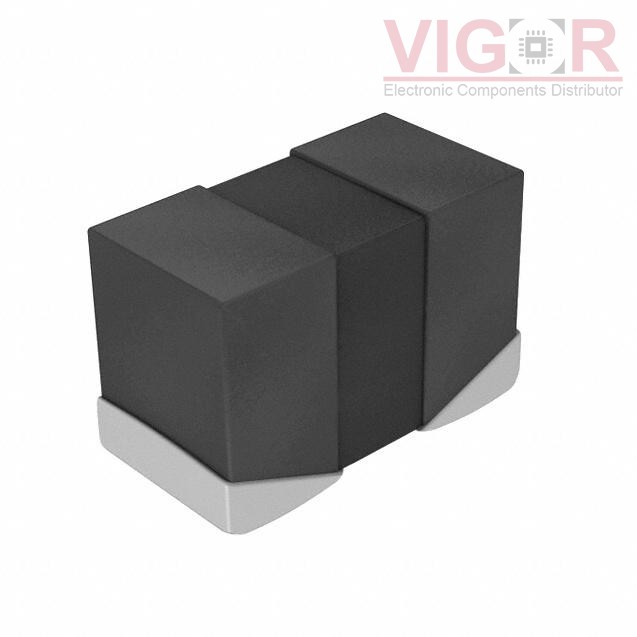

MBMK2520T4R7M

Image is for reference,
please contact us to get the real picture

Part No :: MBMK2520T4R7M

Manufacturer: TAIYO YUDEN

Description: FIXED IND 4.7UH 800MA 380 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: MBMK2520T4R7M PDF

Availability: 2324 pieces

Unit Price: ~~$0.22000~~

Current price of MBMK2520T4R7M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MBMK2520T4R7M Specifications

Type	Description
Series:	MCOIL™, MB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	4.7 µH
Tolerance:	±20%
Current Rating (Amps):	800 mA
Current - Saturation (Isat):	1.15A
Shielding:	Shielded
DC Resistance (DCR):	380mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.047" (1.20mm)
