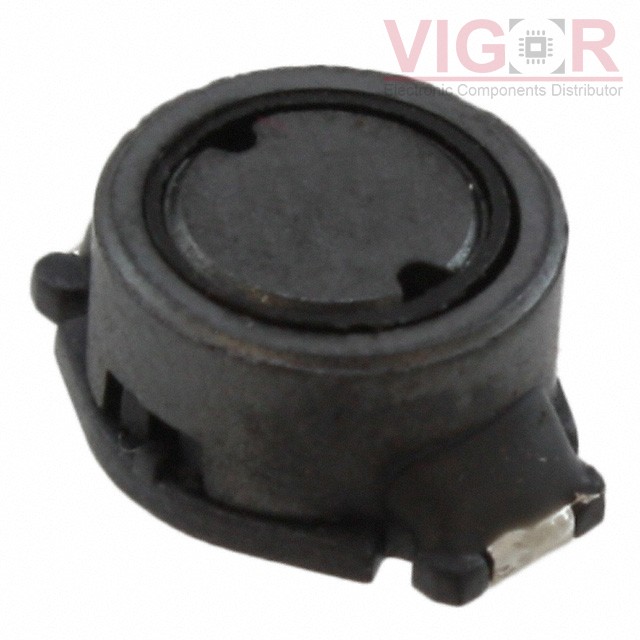

SRR0805-5R6M

SRR0805-5R6M

Image is for reference,
please contact us to get the real picture

Part No :

SRR0805-5R6M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 5.6UH 1.95A 65MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
SRR0805-5R6M PDF
Availability
1000 pieces
Unit Price
$0.97000

Current price of SRR0805-5R6M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRR0805-5R6M Specifications
Type Description
Series:SRR0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:5.6 µH
Tolerance:±20%
Current Rating (Amps):1.95 A
Current - Saturation (Isat):3.2A
Shielding:Shielded
DC Resistance (DCR):65mOhm Max
Q @ Freq:20 @ 7.96MHz
Frequency - Self Resonant:40MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max):0.185" (4.70mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQG15WH6N2S02D

LQG15WH6N2S02D

FIXED IND 6.2NH 700MA 130 MOHM

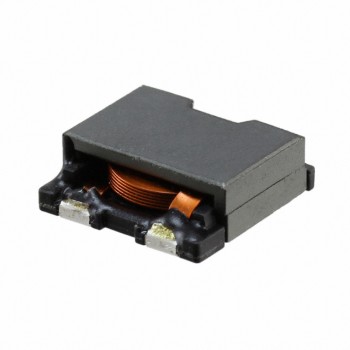

HOT CDEP134NP-1R8MC-H

CDEP134NP-1R8MC-H

FIXED IND 1.8UH 10.5A 6.6 MOHM

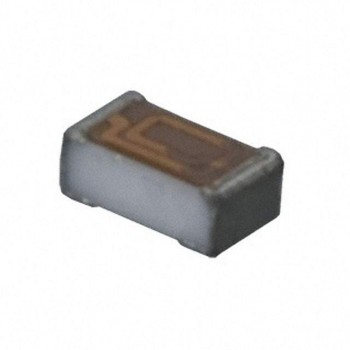

HOT LQP15MN2N2B02D
