BRC1608TR56M

BRC1608TR56M

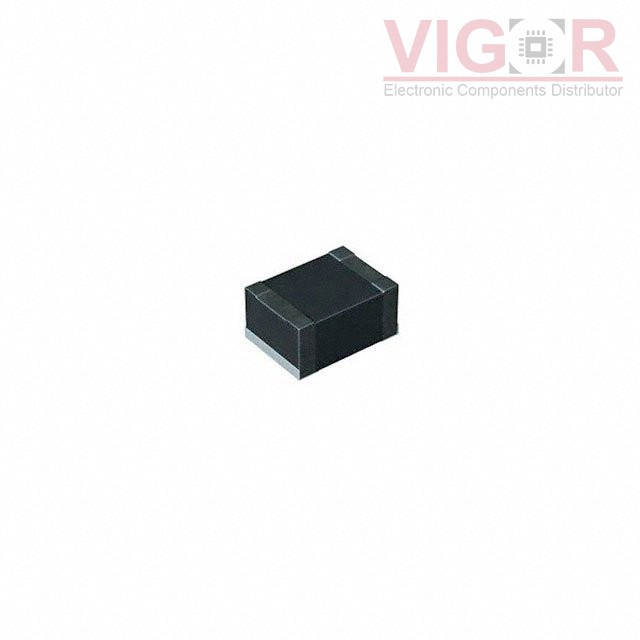

Image is for reference,
please contact us to get the real picture

Part No :

BRC1608TR56M

Manufacturer
TAIYO YUDEN
Description
FIXED IND 560NH 760MA 95 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
BRC1608TR56M PDF
Availability
6522 pieces
Unit Price
$0.32000

Current price of BRC1608TR56M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BRC1608TR56M Specifications
Type Description
Series:BR, C Type
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):760 mA
Current - Saturation (Isat):1.15A
Shielding:Unshielded
DC Resistance (DCR):95mOhm
Q @ Freq:-
Frequency - Self Resonant:170MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.039" (1.00mm)
