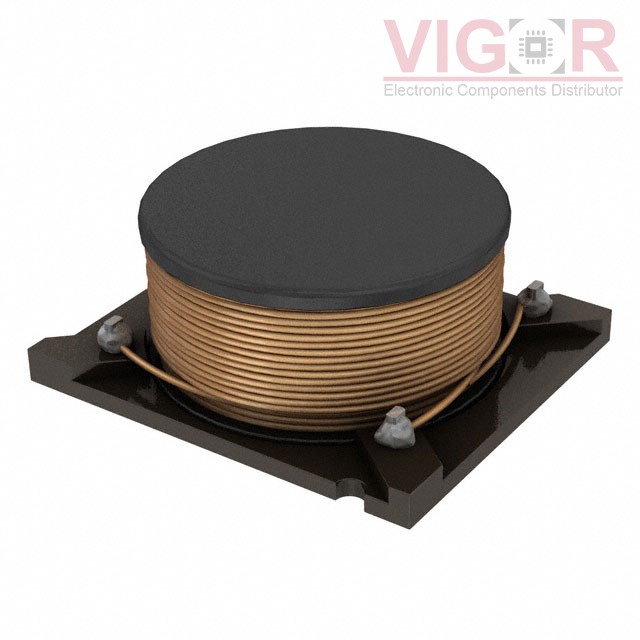

AX97-40820

AX97-40820

Image is for reference,
please contact us to get the real picture

Part No :

AX97-40820

Manufacturer
Triad Magnetics
Description
FIXED IND 82UH 2.2A 120 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
AX97-40820 PDF
Availability
0 pieces
Unit Price
$1.34400

Current price of AX97-40820 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX97-40820 Specifications
Type Description
Series:AX97
Package:Box
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:82 µH
Tolerance:±20%
Current Rating (Amps):2.2 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):120mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.634" L x 0.622" W (16.10mm x 15.80mm)
Height - Seated (Max):0.284" (7.21mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82432C1394J000

B82432C1394J000

FIXED IND 390UH 80MA 15.3 OHM
HOT IMC0603ER33NJ01

IMC0603ER33NJ01

FIXED IND 33NH 600MA 220 MOHM
HOT 3631B470LL

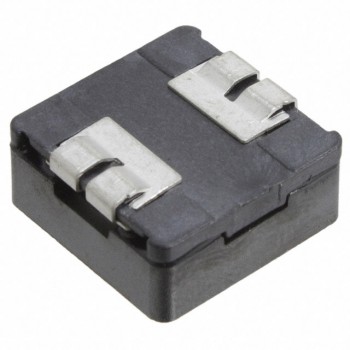

3631B470LL
