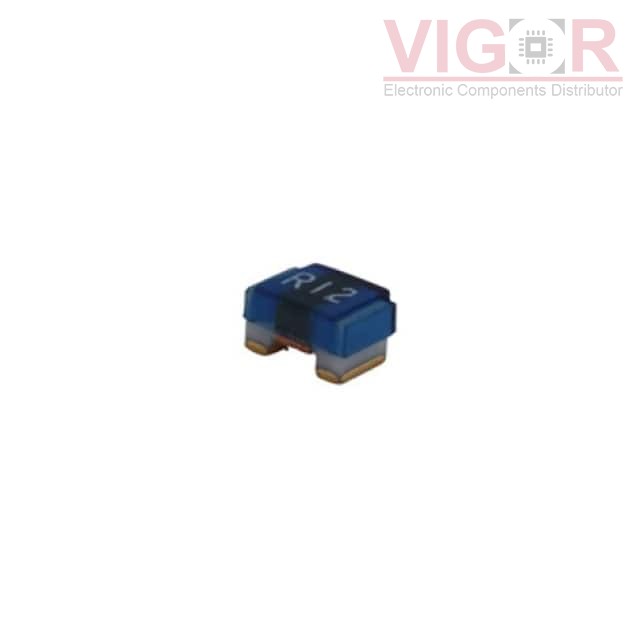

WCLA2012V1-220-R

Image is for reference,
please contact us to get the real picture

Part No :: WCLA2012V1-220-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 22NH 500MA 0.22

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: WCLA2012V1-220-R PDF

Availability: 0 pieces

Unit Price: ~~$0.13090~~

Current price of WCLA2012V1-220-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WCLA2012V1-220-R Specifications

Type	Description
Series:	WCLA2012V1
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	220mOhm Max
Q @ Freq:	55 @ 500MHz
Frequency - Self Resonant:	2.6GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Size / Dimension:	0.091" L x 0.067" W (2.30mm x 1.70mm)
Height - Seated (Max):	0.060" (1.52mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

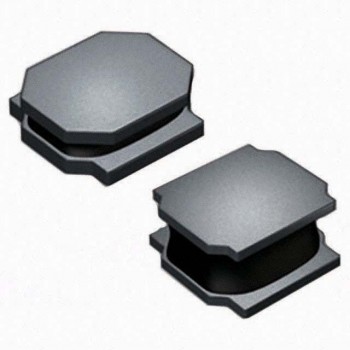

NRS8030T6R8MJGJ

FIXED IND 6.8UH 3A 37.7 MOHM SMD

HOT

S1812R-221G

FIXED IND 220NH 1.154A 150 MOHM

HOT

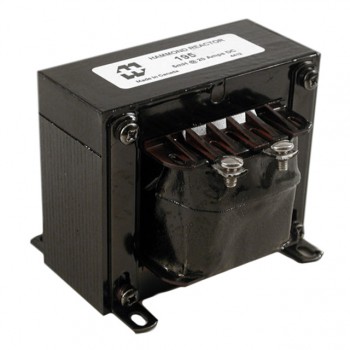

195G10
