MAKK2520HR47M

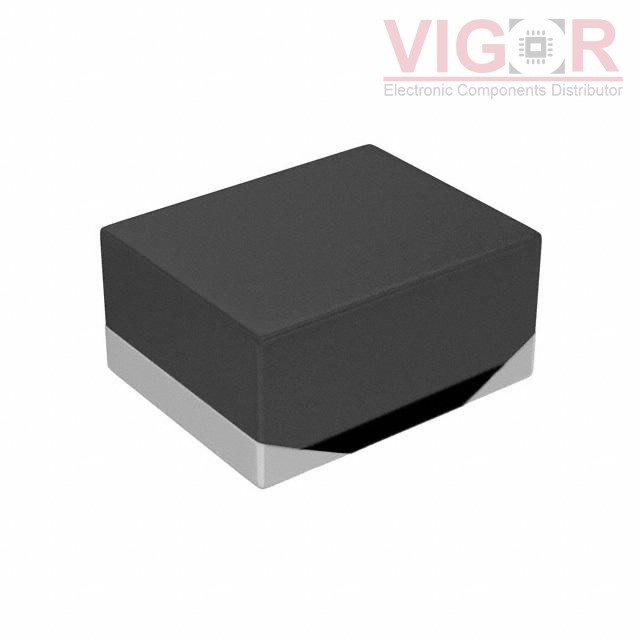

Image is for reference,
please contact us to get the real picture

Part No :: MAKK2520HR47M

Manufacturer: TAIYO YUDEN

Description: FIXED IND 470NH 4A 29 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: MAKK2520HR47M PDF

Availability: 2797 pieces

Unit Price: ~~$0.26000~~

Current price of MAKK2520HR47M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAKK2520HR47M Specifications

Type	Description
Series:	MCOIL™, MA, H Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	470 nH
Tolerance:	±20%
Current Rating (Amps):	4 A
Current - Saturation (Isat):	5.7A
Shielding:	Shielded
DC Resistance (DCR):	29mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.039" (1.00mm)
