RLF12545T-7R8N5R4-PF

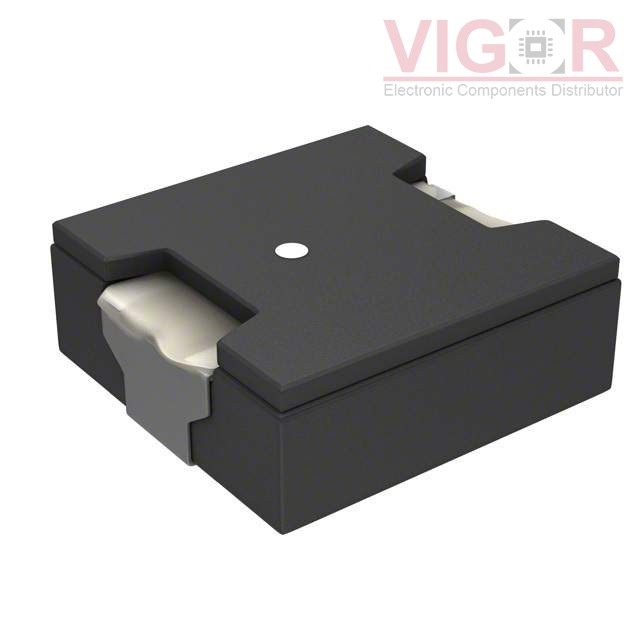

Image is for reference,
please contact us to get the real picture

Part No :: RLF12545T-7R8N5R4-PF

Manufacturer: TDK Corporation

Description: FIXED IND 7.8UH 5.4A 12.24 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: RLF12545T-7R8N5R4-PF PDF

Availability: 207 pieces

Unit Price: ~~$2.32000~~

Current price of RLF12545T-7R8N5R4-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RLF12545T-7R8N5R4-PF Specifications

Type	Description
Series:	RLF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	7.8 µH
Tolerance:	±30%
Current Rating (Amps):	5.4 A
Current - Saturation (Isat):	7A
Shielding:	Shielded
DC Resistance (DCR):	12.24mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.504" L x 0.492" W (12.80mm x 12.50mm)
Height - Seated (Max):	0.185" (4.70mm)

Please confirm the specifications of the products when ordering.
