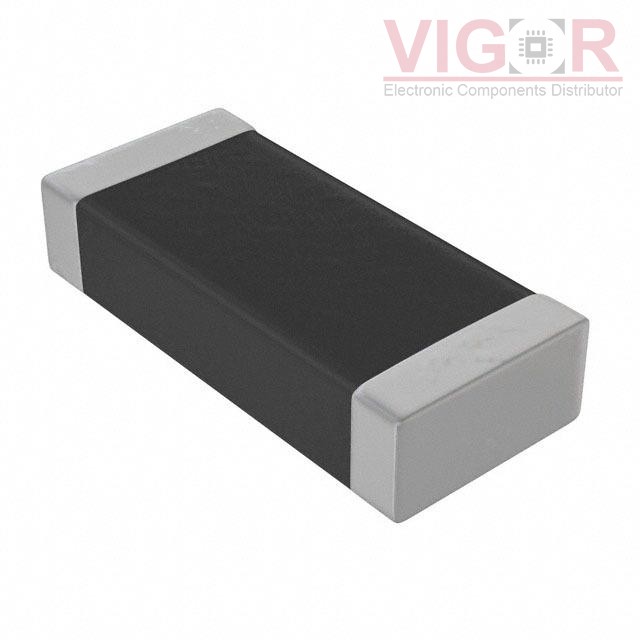

CVH252009-2R2M

CVH252009-2R2M

Image is for reference,
please contact us to get the real picture

Part No :

CVH252009-2R2M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 2.2UH 1.3A 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
CVH252009-2R2M PDF
Availability
246324 pieces
Unit Price
$0.30000

Current price of CVH252009-2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CVH252009-2R2M Specifications
Type Description
Series:CVH252009
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):1.3 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):80mOhm Max
Q @ Freq:-
Frequency - Self Resonant:40MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NR4012T6R8M

NR4012T6R8M

FIXED IND 6.8UH 840MA 216 MOHM

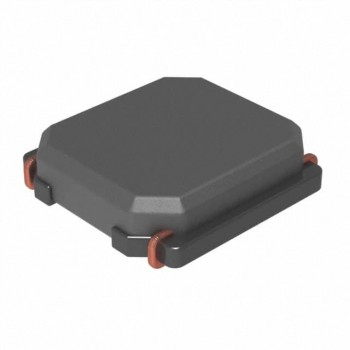

HOT LMLP04A4N3R3CTAS

LMLP04A4N3R3CTAS

FIXED IND 3.3UH 980MA 130 MOHM

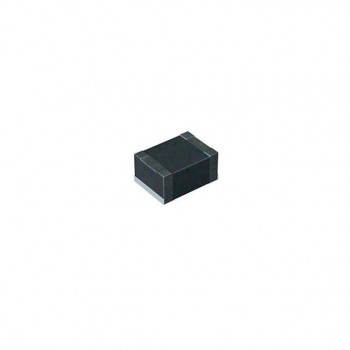

HOT BRL3225T150M
