2200LL-820-H-RC

2200LL-820-H-RC

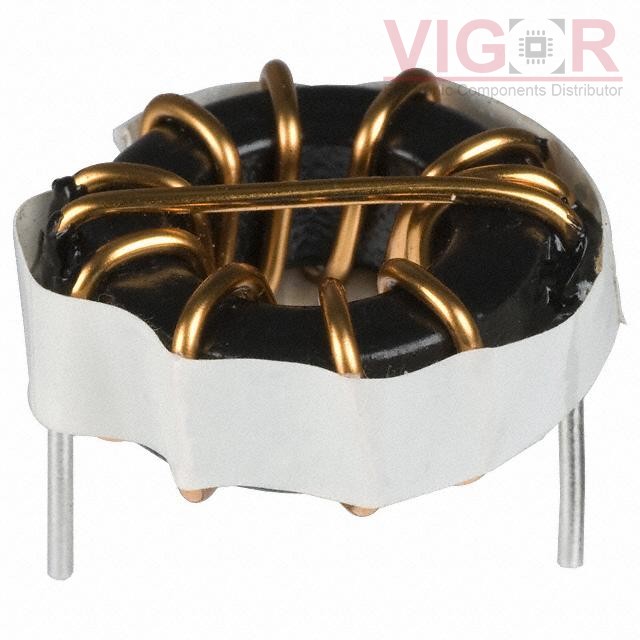

Image is for reference,
please contact us to get the real picture

Part No :

2200LL-820-H-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 82UH 7.1A 24 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
2200LL-820-H-RC PDF
Availability
650 pieces
Unit Price
$4.99000

Current price of 2200LL-820-H-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2200LL-820-H-RC Specifications
Type Description
Series:2200LL
Package:Bulk
Part Status:Active
Type:Toroidal
Material - Core:Sendust
Inductance:82 µH
Tolerance:±15%
Current Rating (Amps):7.1 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):24mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Horizontal (Open)
Supplier Device Package:-
Size / Dimension:1.100" Dia (27.94mm)
Height - Seated (Max):0.550" (13.97mm)
