MLG0603S56NHTD25

MLG0603S56NHTD25

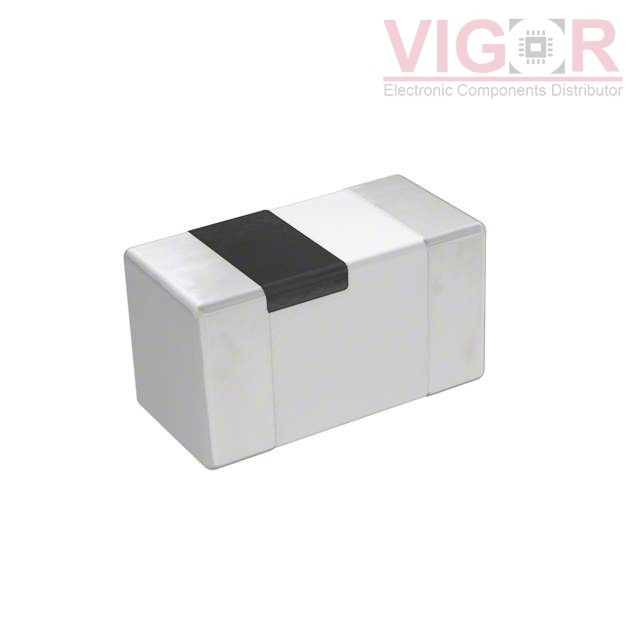

Image is for reference,
please contact us to get the real picture

Part No :

MLG0603S56NHTD25

Manufacturer
TDK Corporation
Description
FIXED IND 56NH 50MA 3.2 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
MLG0603S56NHTD25 PDF
Availability
0 pieces
Unit Price
$0.04558

Current price of MLG0603S56NHTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MLG0603S56NHTD25 Specifications
Type Description
Series:MLG
Package:Tape & Reel (TR)
Part Status:Active
Type:Multilayer
Material - Core:Ceramic, Non-Magnetic
Inductance:56 nH
Tolerance:±3%
Current Rating (Amps):50 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.2Ohm Max
Q @ Freq:5 @ 100MHz
Frequency - Self Resonant:1.2GHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:0201 (0603 Metric)
Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max):0.013" (0.33mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IHHP0806AZER1R5M01

IHHP0806AZER1R5M01

FIXED IND 1.5UH 1.9A 140 MOHM
HOT PE-53934SNLT

PE-53934SNLT

FIXED IND 17UH 3A 50 MOHM SMD

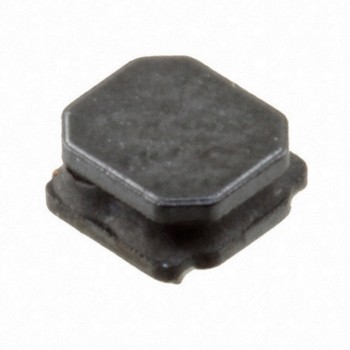

HOT 74404043101A
