TYS3015220M-10

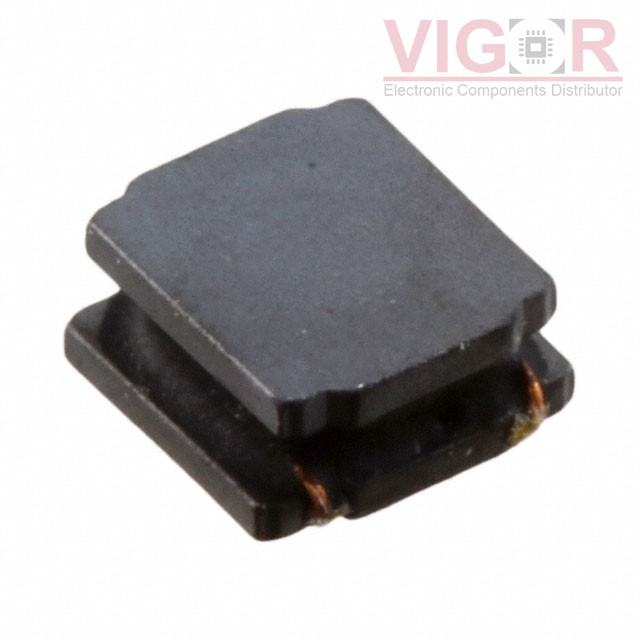

Image is for reference,
please contact us to get the real picture

Part No :: TYS3015220M-10

Manufacturer: Laird - Performance Materials

Description: FIXED IND 22UH 570MA 460 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: TYS3015220M-10 PDF

Availability: 0 pieces

Unit Price: ~~$0.13558~~

Current price of TYS3015220M-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TYS3015220M-10 Specifications

Type	Description
Series:	TYS3015
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	570 mA
Current - Saturation (Isat):	520mA
Shielding:	Shielded
DC Resistance (DCR):	460mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	23MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.067" (1.70mm)
