0603DC-56NXJRW

0603DC-56NXJRW

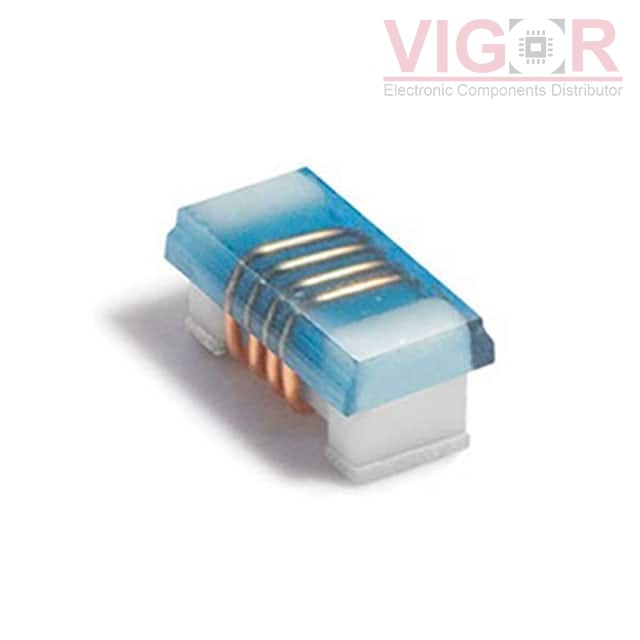

Image is for reference,
please contact us to get the real picture

Part No :

0603DC-56NXJRW

Manufacturer
COILCRAFT
Description
CERAMIC CHIP INDUCTORS 56NH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
0603DC-56NXJRW PDF
Availability
4458 pieces
Unit Price
$0.89000

Current price of 0603DC-56NXJRW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0603DC-56NXJRW Specifications
Type Description
Series:0603DC
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):1.03 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):260mOhm Max
Q @ Freq:72 @ 900MHz
Frequency - Self Resonant:1.85GHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:200 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Size / Dimension:0.067" L x 0.039" W (1.70mm x 0.99mm)
Height - Seated (Max):0.035" (0.89mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82422H1682K000

B82422H1682K000

FIXED IND 6.8UH 570MA 350 MOHM

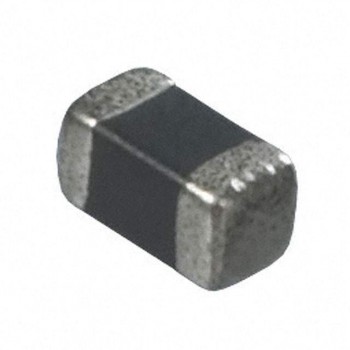

HOT LQB18NNR47J10D

LQB18NNR47J10D

FIXED IND 470NH 400MA 580 MOHM

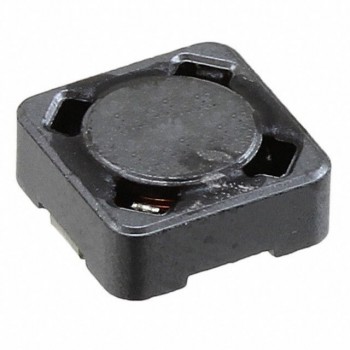

HOT CDRH73NP-270MC-B
