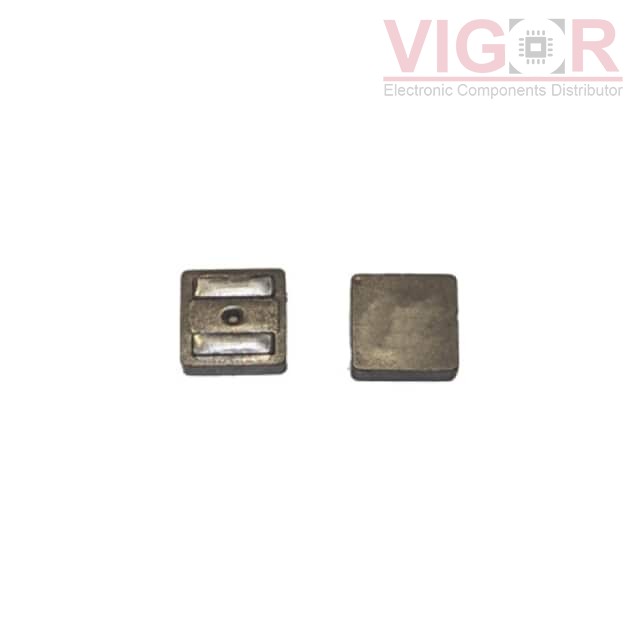

EXL1V0503-R80-R

EXL1V0503-R80-R

Image is for reference,
please contact us to get the real picture

Part No :

EXL1V0503-R80-R

Manufacturer
PowerStor (Eaton)
Description
IND POWDER 0.80UH 18A
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
EXL1V0503-R80-R PDF
Availability
0 pieces
Unit Price
$0.77000

Current price of EXL1V0503-R80-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EXL1V0503-R80-R Specifications
Type Description
Series:EXL1V0503
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:Iron Powder
Inductance:800 nH
Tolerance:±20%
Current Rating (Amps):13.1 A
Current - Saturation (Isat):18A
Shielding:Shielded
DC Resistance (DCR):5.65mOhm Max
Q @ Freq:-
Frequency - Self Resonant:57MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.224" W (6.00mm x 5.70mm)
Height - Seated (Max):0.122" (3.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SP1210-562J

SP1210-562J

FIXED IND 5.6UH 606MA 570 MOHM
HOT S1210-121G

S1210-121G

FIXED IND 120NH 1.062A 170 MOHM

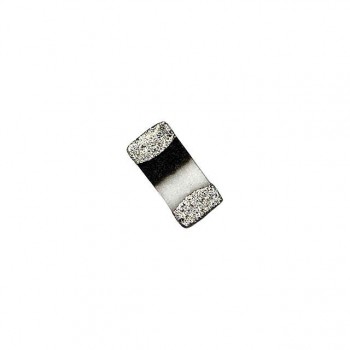

HOT PE-0402CL3N9STT
