PM32-560M-RC

PM32-560M-RC

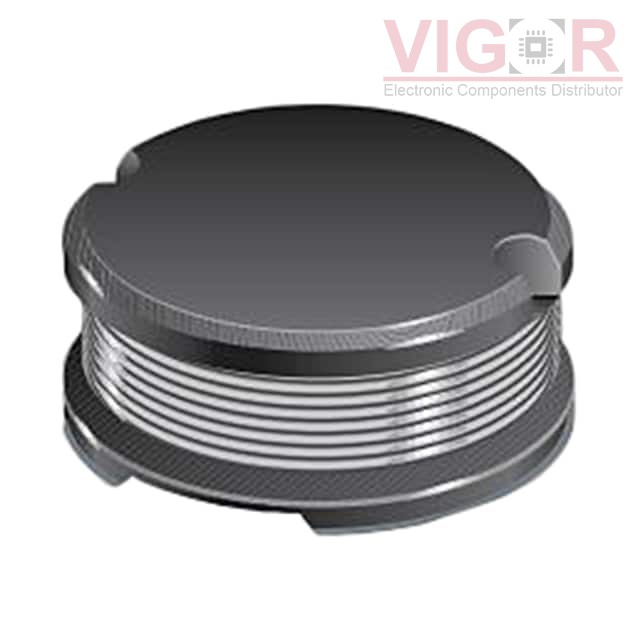

Image is for reference,
please contact us to get the real picture

Part No :

PM32-560M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 340MA 1.45OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
PM32-560M-RC PDF
Availability
0 pieces
Unit Price
$0.20000

Current price of PM32-560M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM32-560M-RC Specifications
Type Description
Series:PM32
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±20%
Current Rating (Amps):340 mA
Current - Saturation (Isat):350mA
Shielding:Unshielded
DC Resistance (DCR):1.45Ohm Max
Q @ Freq:18 @ 2.52MHz
Frequency - Self Resonant:16MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max):0.110" (2.80mm)
