AISC-0805F-2R2G-T

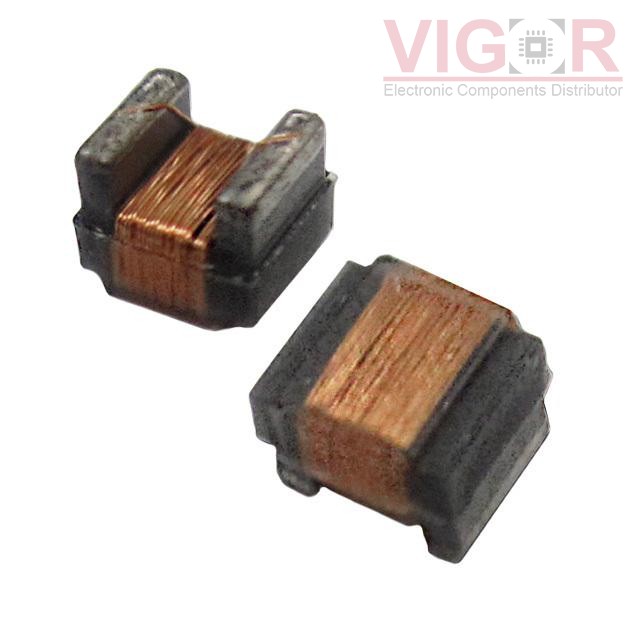

Image is for reference,
please contact us to get the real picture

Part No :: AISC-0805F-2R2G-T

Manufacturer: Abracon

Description: FIXED IND 2.2UH 100MA 2.5 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: AISC-0805F-2R2G-T PDF

Availability: 0 pieces

Unit Price: ~~$0.32000~~

Current price of AISC-0805F-2R2G-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AISC-0805F-2R2G-T Specifications

Type	Description
Series:	AISC-0805F
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±2%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.5Ohm Max
Q @ Freq:	10 @ 50MHz
Frequency - Self Resonant:	200MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Size / Dimension:	0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max):	0.061" (1.55mm)
