LQW04AN12NH00D

LQW04AN12NH00D

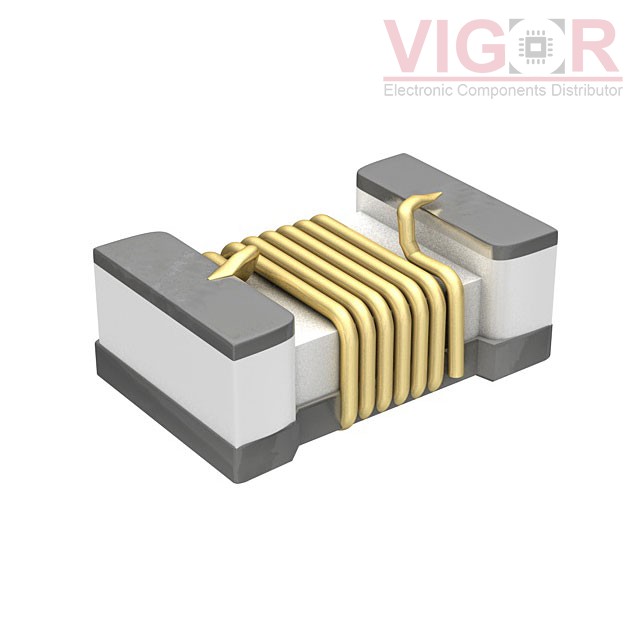

Image is for reference,
please contact us to get the real picture

Part No :

LQW04AN12NH00D

Manufacturer
TOKO / Murata
Description
FIXED IND 12NH 310MA 280 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
LQW04AN12NH00D PDF
Availability
0 pieces
Unit Price
$0.16161

Current price of LQW04AN12NH00D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW04AN12NH00D Specifications
Type Description
Series:LQW04
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:12 nH
Tolerance:±3%
Current Rating (Amps):310 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):280mOhm Max
Q @ Freq:15 @ 250MHz
Frequency - Self Resonant:6GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0302 (0804 Metric)
Supplier Device Package:03015 (0804 Metric)
Size / Dimension:0.031" L x 0.016" W (0.80mm x 0.40mm)
Height - Seated (Max):0.018" (0.45mm)
