HCM1A1305-1R5-R

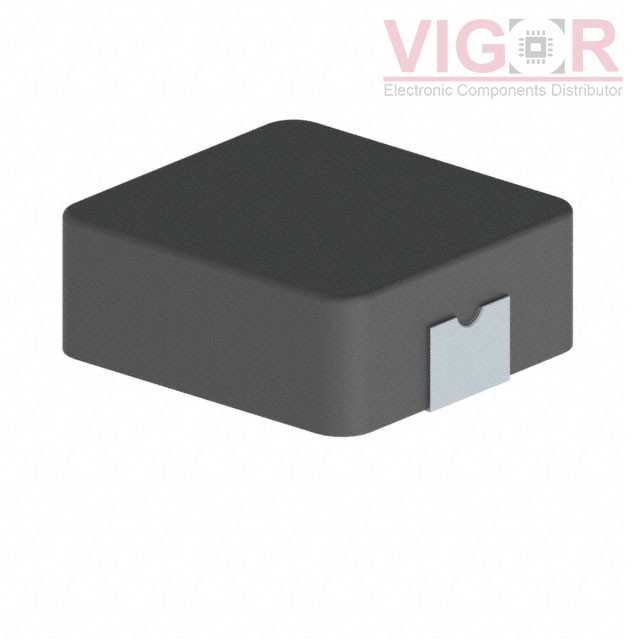

Image is for reference,
please contact us to get the real picture

Part No :: HCM1A1305-1R5-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 1.5UH 18A 3.16MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: HCM1A1305-1R5-R PDF

Availability: 0 pieces

Unit Price: ~~$3.02568~~

Current price of HCM1A1305-1R5-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCM1A1305-1R5-R Specifications

Type	Description
Series:	HCM1A
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron Powder
Inductance:	1.5 µH
Tolerance:	±20%
Current Rating (Amps):	18 A
Current - Saturation (Isat):	22A
Shielding:	Shielded
DC Resistance (DCR):	3.16mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max):	0.197" (5.00mm)
