SDR0503-153JL

SDR0503-153JL

Image is for reference,
please contact us to get the real picture

Part No :

SDR0503-153JL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 15MH 20MA 168 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
SDR0503-153JL PDF
Availability
234 pieces
Unit Price
$0.62000

Current price of SDR0503-153JL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0503-153JL Specifications
Type Description
Series:SDR0503
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:15 mH
Tolerance:±5%
Current Rating (Amps):20 mA
Current - Saturation (Isat):32mA
Shielding:Unshielded
DC Resistance (DCR):168Ohm Max
Q @ Freq:30 @ 79.6kHz
Frequency - Self Resonant:1MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max):0.130" (3.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQG15WH2N7C02D

LQG15WH2N7C02D

FIXED IND 2.7NH 900MA 70 MOHM
HOT SRR4011-R47YL

SRR4011-R47YL

FIXED IND 470NH 3.2A 30 MOHM SMD

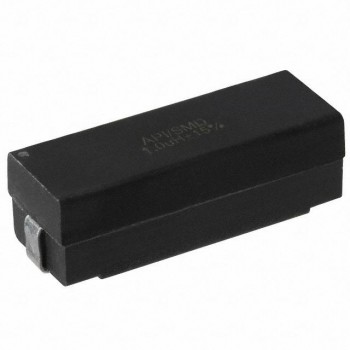

HOT 8532-06L
