PM42S-101-RC

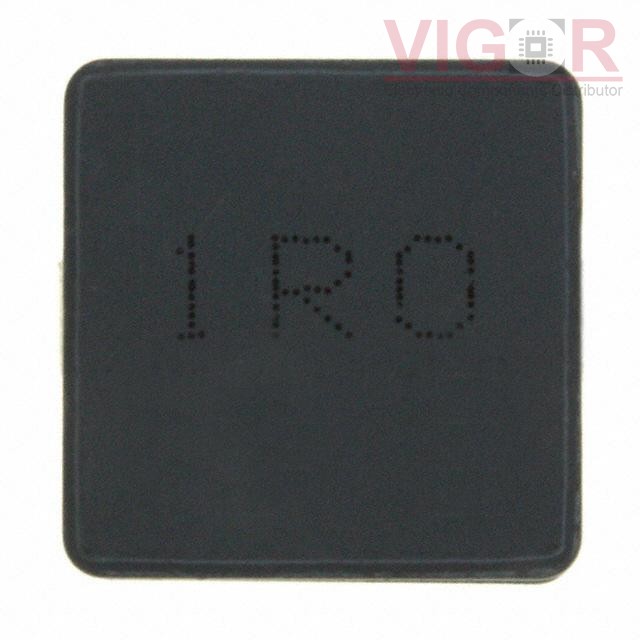

Image is for reference,
please contact us to get the real picture

Part No :: PM42S-101-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 100UH 400MA 1.35OHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: PM42S-101-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.70400~~

Current price of PM42S-101-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM42S-101-RC Specifications

Type	Description
Series:	PM42S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±30%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	300mA
Shielding:	Shielded
DC Resistance (DCR):	1.35Ohm Max
Q @ Freq:	10 @ 796kHz
Frequency - Self Resonant:	12MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max):	0.118" (3.00mm)
