7447786122

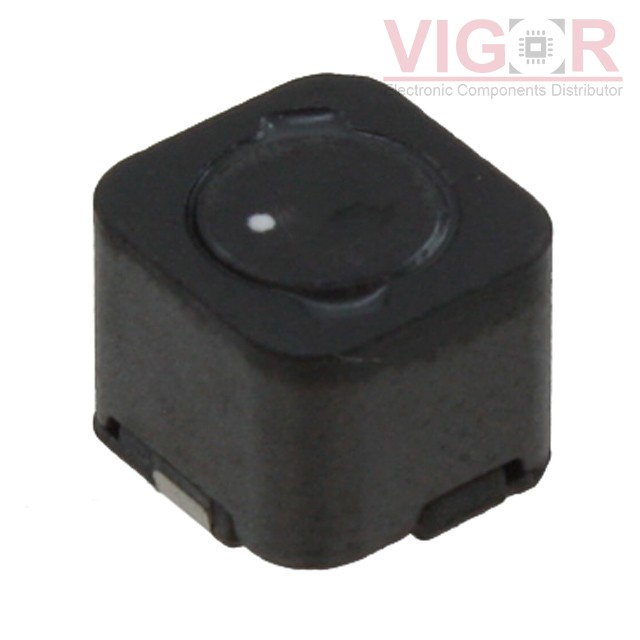

Image is for reference,
please contact us to get the real picture

Part No :: 7447786122

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 2A 115 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: 7447786122 PDF

Availability: 2426 pieces

Unit Price: ~~$2.46000~~

Current price of 7447786122 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7447786122 Specifications

Type	Description
Series:	WE-PD Robust
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±25%
Current Rating (Amps):	2 A
Current - Saturation (Isat):	1.3A
Shielding:	Shielded
DC Resistance (DCR):	115mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	15MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Max):	0.201" (5.10mm)
