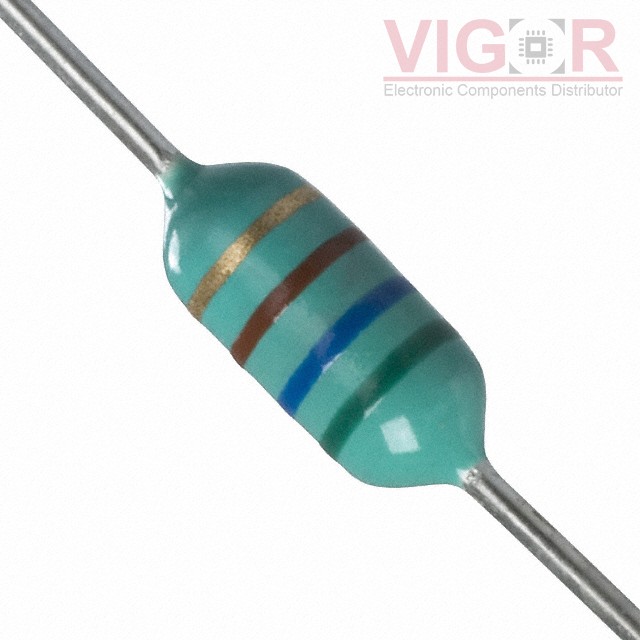

78F561J-RC

78F561J-RC

Image is for reference,
please contact us to get the real picture

Part No :

78F561J-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560UH 85MA 15.5 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
78F561J-RC PDF
Availability
0 pieces
Unit Price
$0.09765

Current price of 78F561J-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

78F561J-RC Specifications
Type Description
Series:78F
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±5%
Current Rating (Amps):85 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):15.5Ohm Max
Q @ Freq:60 @ 790kHz
Frequency - Self Resonant:2.35MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.110" Dia x 0.280" L (2.79mm x 7.11mm)
Height - Seated (Max):-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW18AN31NG8ZD

LQW18AN31NG8ZD

FIXED IND 31NH 1.1A 110 MOHM
HOT CIGT201610LM1R0MNE

CIGT201610LM1R0MNE

FIXED IND 1UH 2.4A 72MOHM SMD

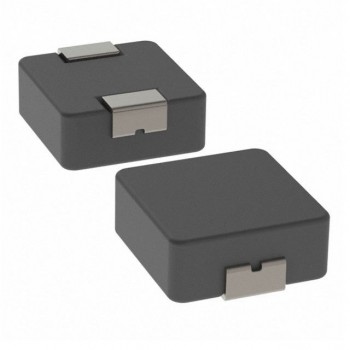

HOT PA4547.562NLT
