ELJ-FBR56MF

ELJ-FBR56MF

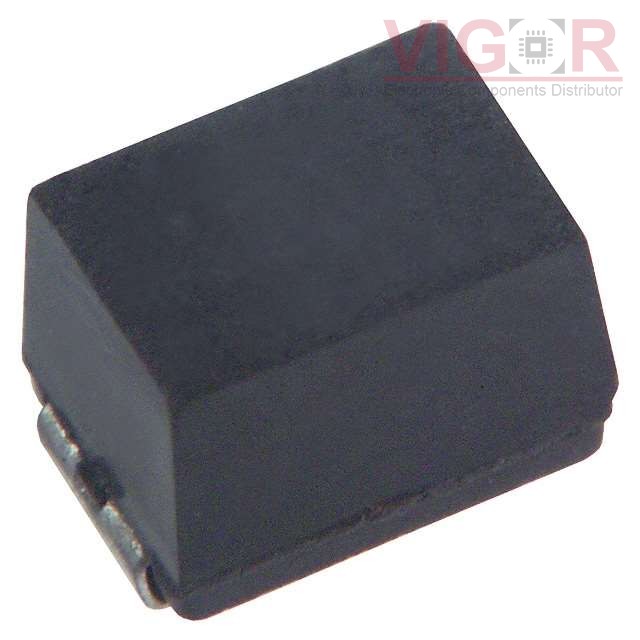

Image is for reference,
please contact us to get the real picture

Part No :

ELJ-FBR56MF

Manufacturer
Panasonic
Description
FIXED IND 560NH 560MA 420 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ELJ-FBR56MF PDF
Availability
1817 pieces
Unit Price
$0.41000

Current price of ELJ-FBR56MF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELJ-FBR56MF Specifications
Type Description
Series:FB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):560 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):420mOhm Max
Q @ Freq:30 @ 25.2MHz
Frequency - Self Resonant:120MHz
Ratings:-
Operating Temperature:-20°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
