PM0805-47NM-RC

PM0805-47NM-RC

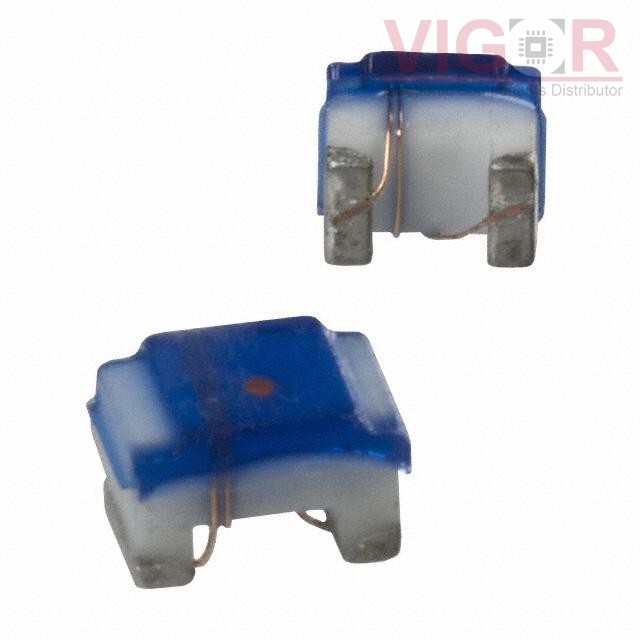

Image is for reference,
please contact us to get the real picture

Part No :

PM0805-47NM-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 47NH 500MA 150MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
PM0805-47NM-RC PDF
Availability
296 pieces
Unit Price
$0.36000

Current price of PM0805-47NM-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM0805-47NM-RC Specifications
Type Description
Series:PM0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Alumina
Inductance:47 nH
Tolerance:±20%
Current Rating (Amps):500 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):150mOhm
Q @ Freq:60 @ 500MHz
Frequency - Self Resonant:1.7GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:200 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max):0.059" (1.50mm)
