SDR1005-R68ML

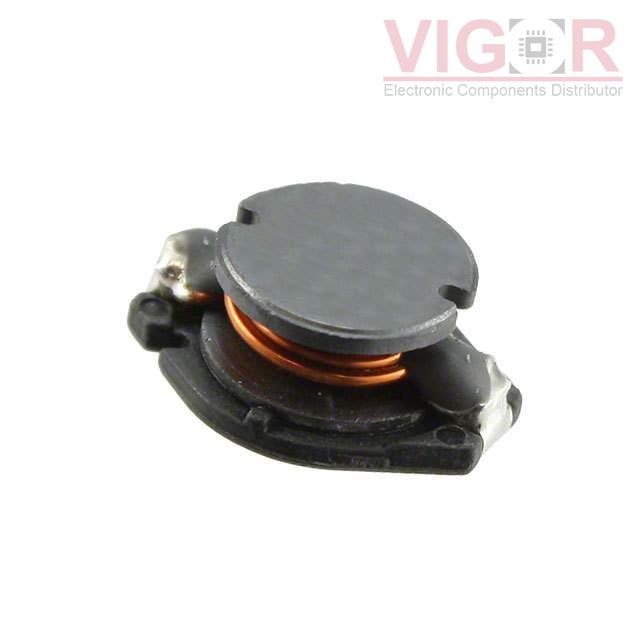

Image is for reference,
please contact us to get the real picture

Part No :: SDR1005-R68ML

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 680NH 8.5A 6 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: SDR1005-R68ML PDF

Availability: 0 pieces

Unit Price: ~~$0.35530~~

Current price of SDR1005-R68ML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1005-R68ML Specifications

Type	Description
Series:	SDR1005
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	8.5 A
Current - Saturation (Isat):	9.5A
Shielding:	Unshielded
DC Resistance (DCR):	6mOhm Max
Q @ Freq:	26 @ 7.96MHz
Frequency - Self Resonant:	160MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):	0.197" (5.00mm)
