SDR7030-2R2M

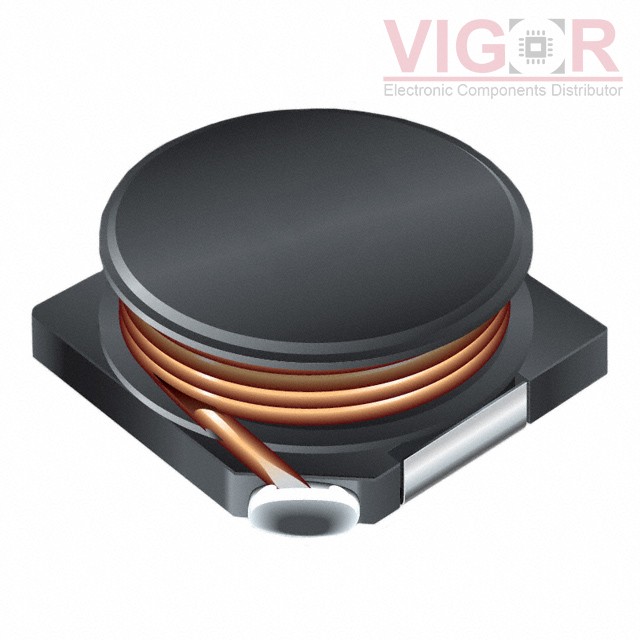

Image is for reference,
please contact us to get the real picture

Part No :: SDR7030-2R2M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 2.2UH 2.6A 30 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: SDR7030-2R2M PDF

Availability: 0 pieces

Unit Price: ~~$0.37400~~

Current price of SDR7030-2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR7030-2R2M Specifications

Type	Description
Series:	SDR7030
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	2.6 A
Current - Saturation (Isat):	3.2A
Shielding:	Unshielded
DC Resistance (DCR):	30mOhm Max
Q @ Freq:	17 @ 7.96MHz
Frequency - Self Resonant:	80MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max):	0.130" (3.30mm)
