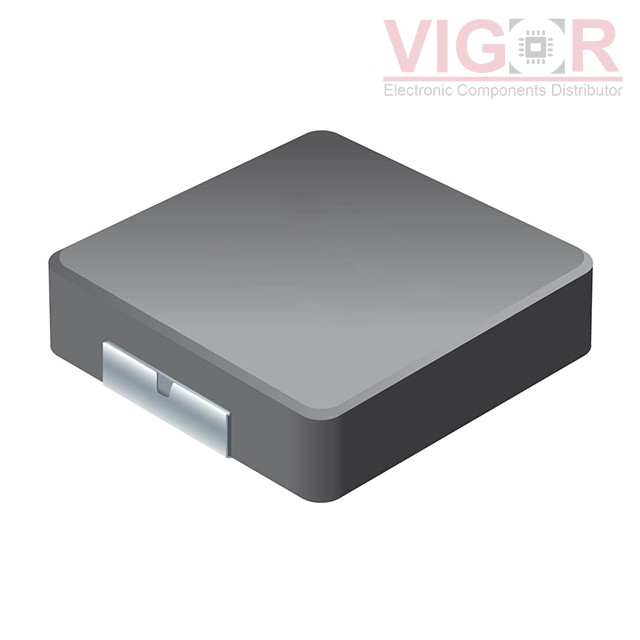

SRP3020TA-R22Y

Image is for reference,
please contact us to get the real picture

Part No :: SRP3020TA-R22Y

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 220NH 9A 14 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: SRP3020TA-R22Y PDF

Availability: 2021 pieces

Unit Price: ~~$1.23000~~

Current price of SRP3020TA-R22Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP3020TA-R22Y Specifications

Type	Description
Series:	SRP3020TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	220 nH
Tolerance:	±30%
Current Rating (Amps):	9 A
Current - Saturation (Isat):	11.2A
Shielding:	Shielded
DC Resistance (DCR):	14mOhm Max
Q @ Freq:	5 @ 100kHz
Frequency - Self Resonant:	185MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Supplier Device Package:	2-SMD
Size / Dimension:	0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

NR8040T680M

FIXED IND 68UH 1.1A 299 MOHM SMD

HOT

74438357100

FIXED IND 10UH 2.7A 110 MOHM SMD

HOT

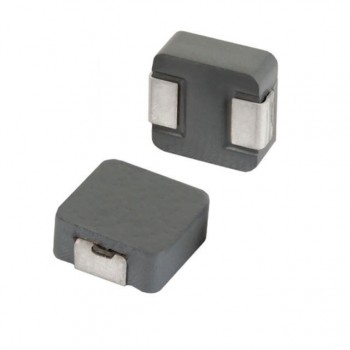

MGV1004470M-10
