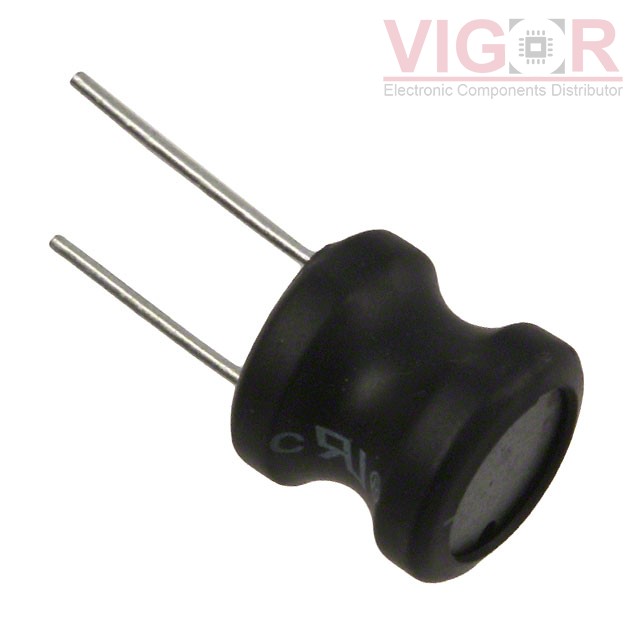

RLB1314-220KL

Image is for reference,
please contact us to get the real picture

Part No :: RLB1314-220KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 2.2A 26 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: RLB1314-220KL PDF

Availability: 782 pieces

Unit Price: ~~$0.62000~~

Current price of RLB1314-220KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RLB1314-220KL Specifications

Type	Description
Series:	RLB
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	2.2 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	26mOhm Max
Q @ Freq:	110 @ 2.52MHz
Frequency - Self Resonant:	14MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.461" Dia (11.70mm)
Height - Seated (Max):	0.512" (13.00mm)
