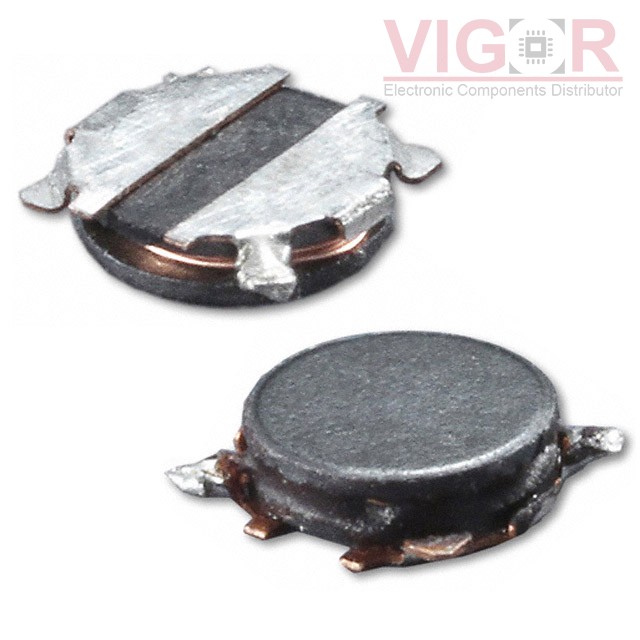

ASPI-0309-220M-T4

Image is for reference,
please contact us to get the real picture

Part No :: ASPI-0309-220M-T4

Manufacturer: Abracon

Description: FIXED IND 22UH 290MA 1.93 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: ASPI-0309-220M-T4 PDF

Availability: 5165 pieces

Unit Price: ~~$0.42000~~

Current price of ASPI-0309-220M-T4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ASPI-0309-220M-T4 Specifications

Type	Description
Series:	ASPI-0309
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Nickel Zinc Ferrite (NiZn)
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	290 mA
Current - Saturation (Isat):	300mA
Shielding:	Unshielded
DC Resistance (DCR):	1.93Ohm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-30°C ~ 100°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.035" (0.90mm)

Please confirm the specifications of the products when ordering.
