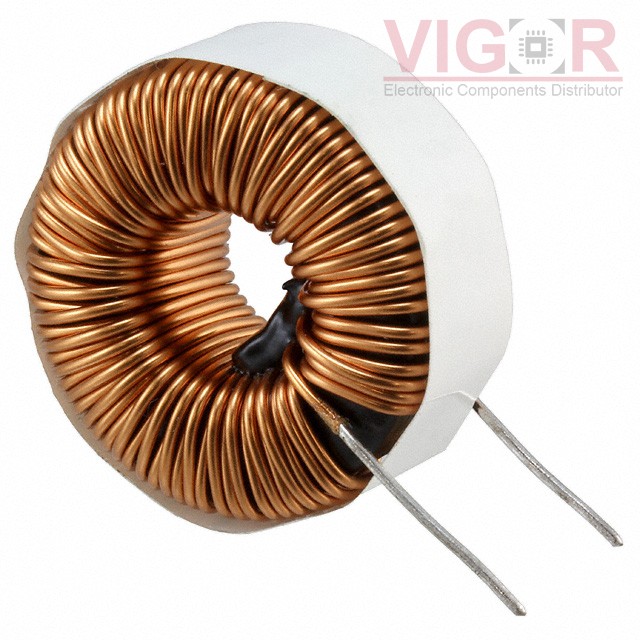

2300LL-100-V-RC

Image is for reference,
please contact us to get the real picture

Part No :: 2300LL-100-V-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 10UH 20.8A 4 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: 2300LL-100-V-RC PDF

Availability: 0 pieces

Unit Price: ~~$2.97567~~

Current price of 2300LL-100-V-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2300LL-100-V-RC Specifications

Type	Description
Series:	2300LL
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Sendust
Inductance:	10 µH
Tolerance:	±15%
Current Rating (Amps):	20.8 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical (Open)
Supplier Device Package:	-
Size / Dimension:	1.280" Dia x 0.650" W (32.51mm x 16.51mm)
Height - Seated (Max):	-
