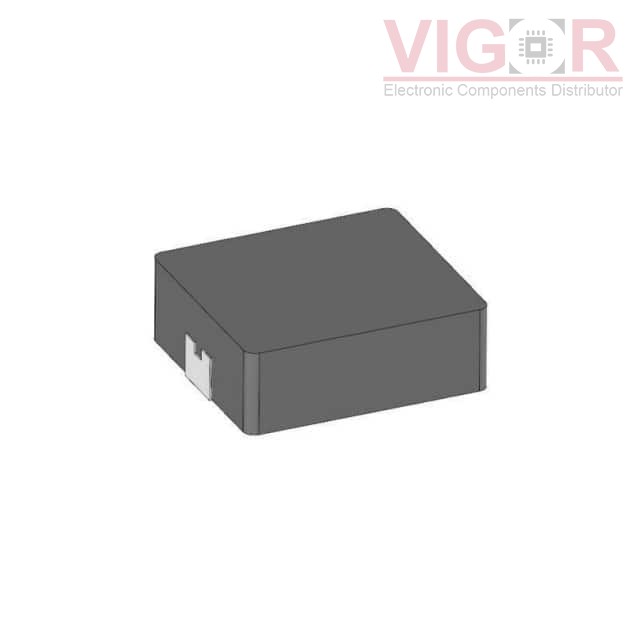

AMPLA1004S-5R6MT

Image is for reference,
please contact us to get the real picture

Part No :: AMPLA1004S-5R6MT

Manufacturer: Abracon

Description: FIXED IND 5.6UH 9A 19.3 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: AMPLA1004S-5R6MT PDF

Availability: 0 pieces

Unit Price: ~~$0.81734~~

Current price of AMPLA1004S-5R6MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMPLA1004S-5R6MT Specifications

Type	Description
Series:	AMPLA1004S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Carbonyl Powder
Inductance:	5.6 µH
Tolerance:	±20%
Current Rating (Amps):	9 A
Current - Saturation (Isat):	14A
Shielding:	Shielded
DC Resistance (DCR):	19.3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)

Please confirm the specifications of the products when ordering.
