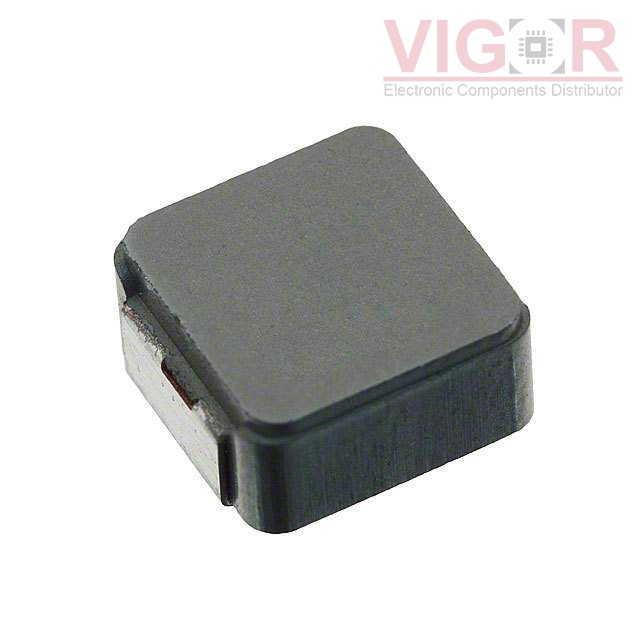

IHLP3232DZER2R2M01

Image is for reference,
please contact us to get the real picture

Part No :: IHLP3232DZER2R2M01

Manufacturer: Vishay / Dale

Description: FIXED IND 2.2UH 10.5A 13.7 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: IHLP3232DZER2R2M01 PDF

Availability: 7487 pieces

Unit Price: ~~$1.40000~~

Current price of IHLP3232DZER2R2M01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP3232DZER2R2M01 Specifications

Type	Description
Series:	IHLP-3232DZ-01
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	10.5 A
Current - Saturation (Isat):	23A
Shielding:	Shielded
DC Resistance (DCR):	13.7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	33MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max):	0.157" (4.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

CC322522A-470K

FIXED INDUCTOR

HOT

744373460033

FIXED IND 330NH 13A 3.9 MOHM SMD

HOT

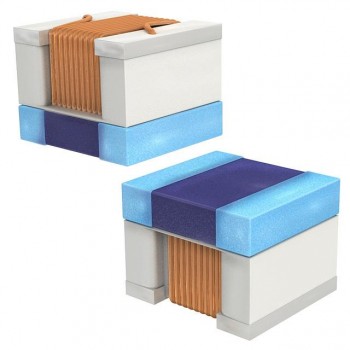

LQW2BAN68NG00L
