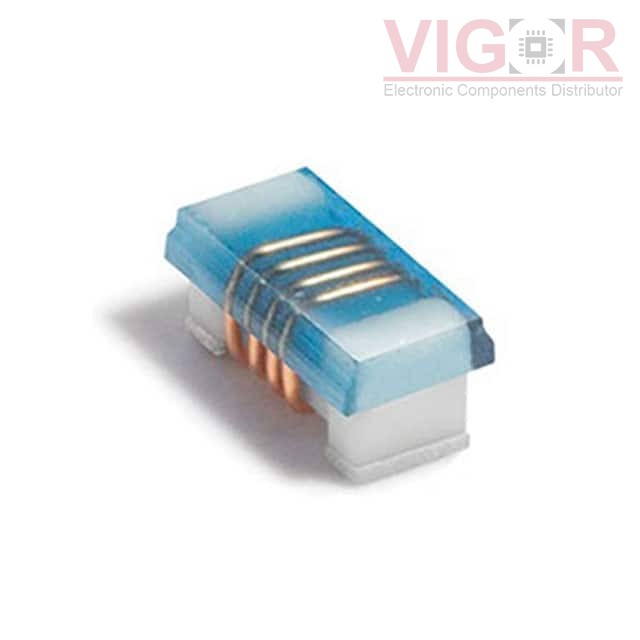

0603DC-R22XJRW

0603DC-R22XJRW

Image is for reference,
please contact us to get the real picture

Part No :

0603DC-R22XJRW

Manufacturer
COILCRAFT
Description
CERAMIC CHIP INDUCTOR,220NH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
0603DC-R22XJRW PDF
Availability
4426 pieces
Unit Price
$0.89000

Current price of 0603DC-R22XJRW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0603DC-R22XJRW Specifications
Type Description
Series:0603DC
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:220 nH
Tolerance:±5%
Current Rating (Amps):390 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.69Ohm Max
Q @ Freq:-
Frequency - Self Resonant:900MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Size / Dimension:0.067" L x 0.039" W (1.70mm x 0.99mm)
Height - Seated (Max):0.035" (0.89mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLF2012E8R2KT000

MLF2012E8R2KT000

FIXED IND 8.2UH 15MA 700 MOHM
HOT B82442A1395K000

B82442A1395K000

FIXED IND 3.9MH 38MA 56 OHM SMD

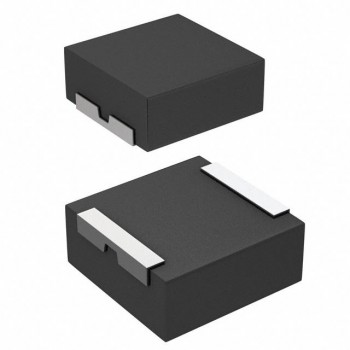

HOT IHLP6767GZER6R8M11
