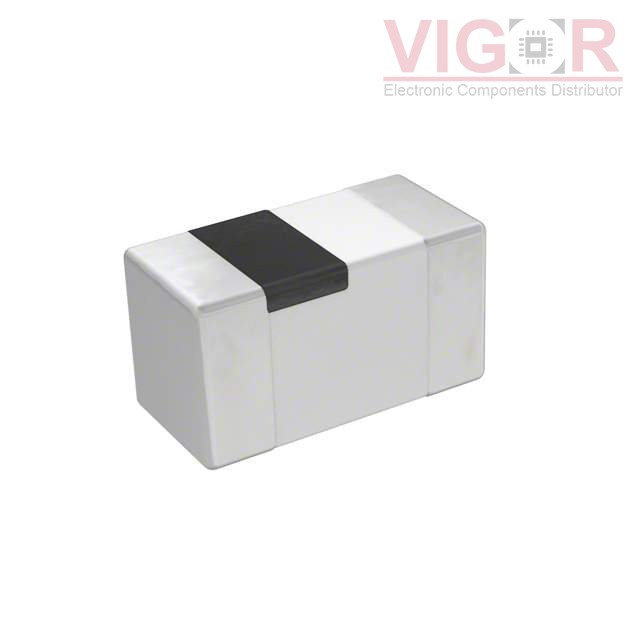

MLG0603P56NJTD25

Image is for reference,
please contact us to get the real picture

Part No :: MLG0603P56NJTD25

Manufacturer: TDK Corporation

Description: FIXED IND 56NH 100MA 3.5 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: MLG0603P56NJTD25 PDF

Availability: 14860 pieces

Unit Price: ~~$0.23000~~

Current price of MLG0603P56NJTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MLG0603P56NJTD25 Specifications

Type	Description
Series:	MLG-P
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Non-Magnetic
Inductance:	56 nH
Tolerance:	±5%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.5Ohm Max
Q @ Freq:	10 @ 300MHz
Frequency - Self Resonant:	1.4GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	300 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	0201 (0603 Metric)
Size / Dimension:	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max):	0.013" (0.33mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

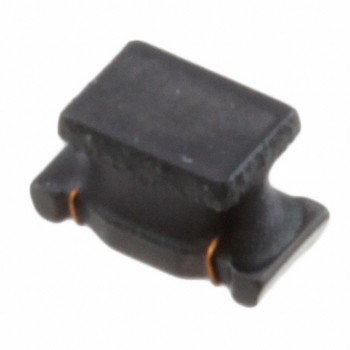

LQH31MN680J03L

FIXED IND 68UH 50MA 12.87 OHM

HOT

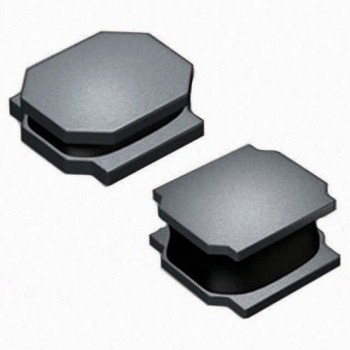

NRS4012T100MDGJV

FIXED IND 10UH 1.1A 204 MOHM SMD

HOT

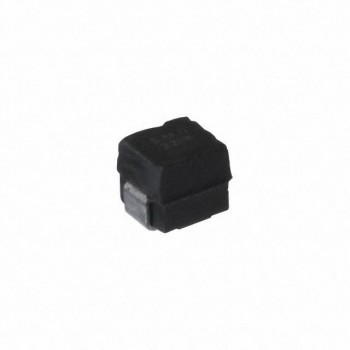

1008-222K
