CB2012T2R2M

CB2012T2R2M

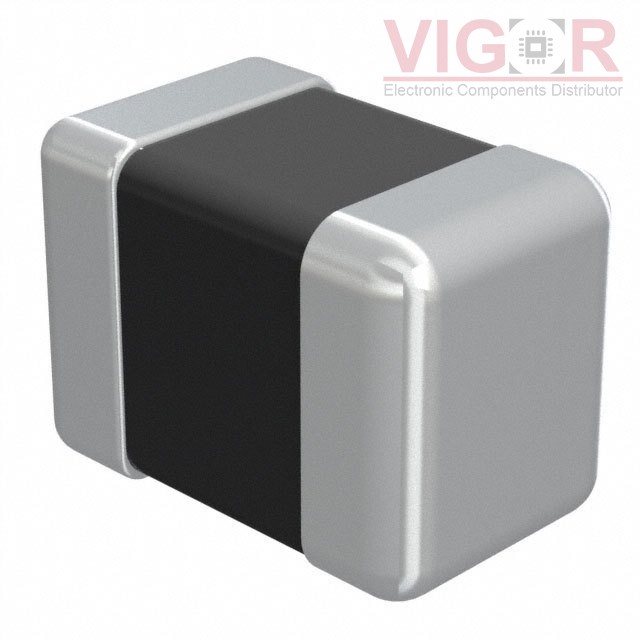

Image is for reference,
please contact us to get the real picture

Part No :

CB2012T2R2M

Manufacturer
TAIYO YUDEN
Description
FIXED IND 2.2UH 770MA 299 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
CB2012T2R2M PDF
Availability
578 pieces
Unit Price
$0.22000

Current price of CB2012T2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CB2012T2R2M Specifications
Type Description
Series:CB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):770 mA
Current - Saturation (Isat):410mA
Shielding:Unshielded
DC Resistance (DCR):299mOhm Max
Q @ Freq:-
Frequency - Self Resonant:80MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.057" (1.45mm)
