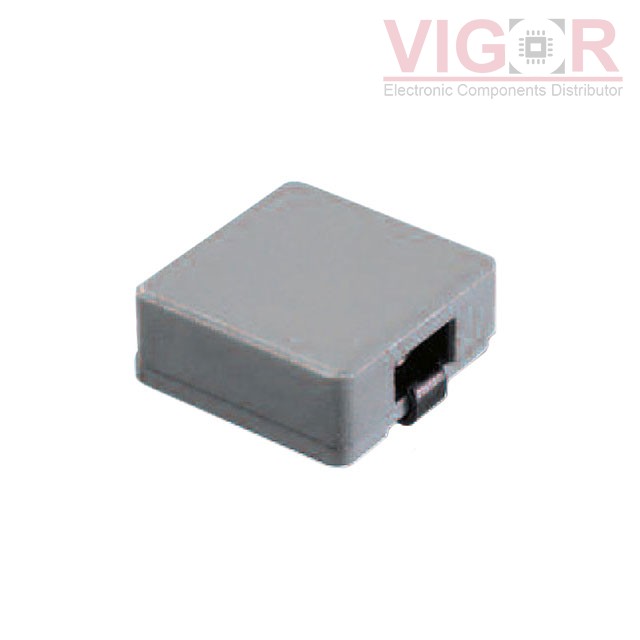

AX02-303R9

Image is for reference,
please contact us to get the real picture

Part No :: AX02-303R9

Manufacturer: Triad Magnetics

Description: FIXED IND 3.9UH 10A 6.8 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: AX02-303R9 PDF

Availability: 0 pieces

Unit Price: ~~$1.08000~~

Current price of AX02-303R9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX02-303R9 Specifications

Type	Description
Series:	AX02
Package:	Box
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.9 µH
Tolerance:	±20%
Current Rating (Amps):	10 A
Current - Saturation (Isat):	18A
Shielding:	Shielded
DC Resistance (DCR):	6.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	SMD
Size / Dimension:	0.524" L x 0.591" W (13.30mm x 15.00mm)
Height - Seated (Max):	0.256" (6.50mm)
